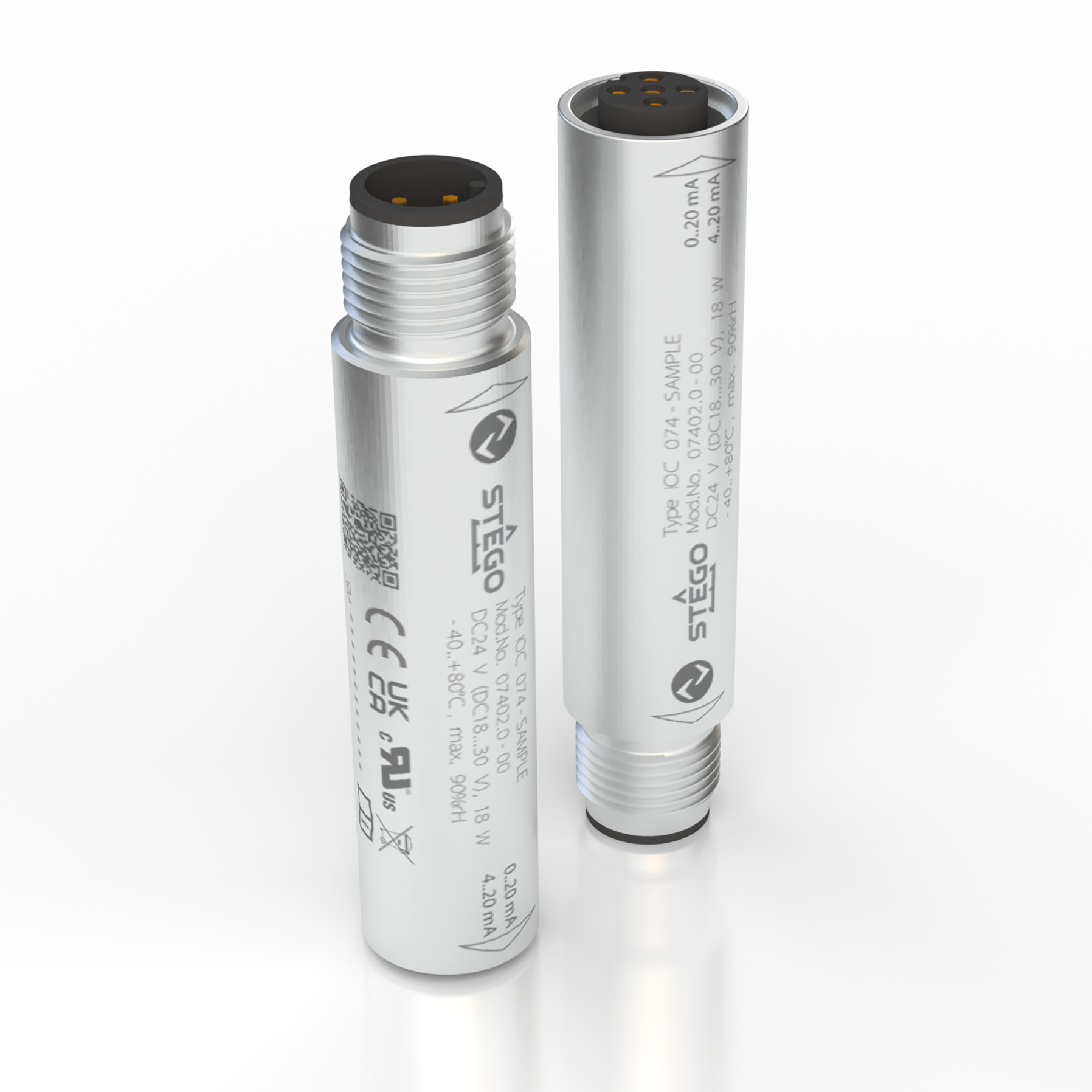

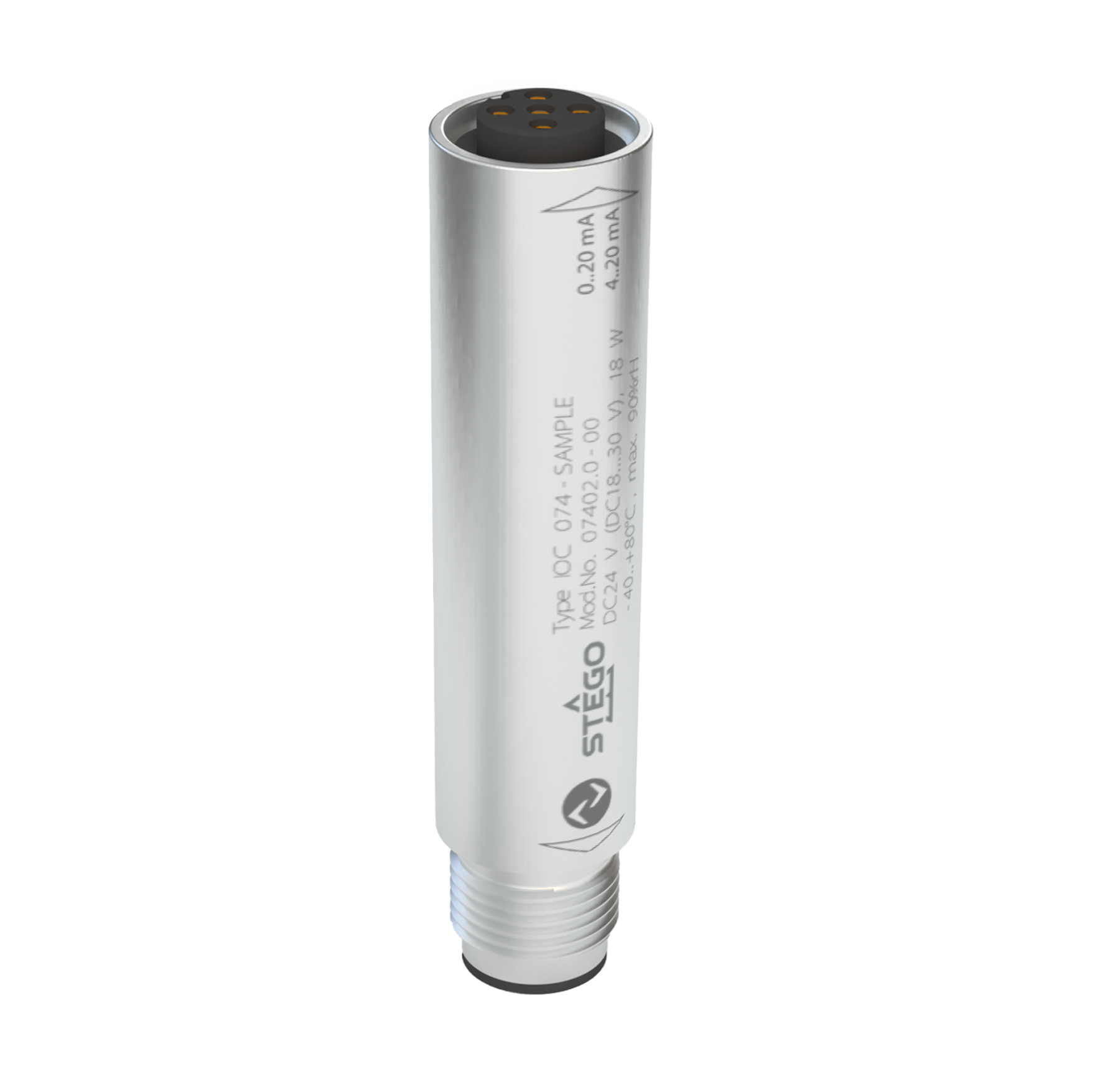

IO-Link converter
IOC 074
The IO-Link converter converts up to three analog 4..20mA signals into the digital IO-Link protocol. This allows, for example, analog sensors to be integrated into an existing IO-Link environment (retrofit). It is used as accessories for analog sensors with a 4 to 20mA interface for measuring purposes.
- converts 4..20mA analog to IO-Link
- Digital IO-Link interface
- Up to three analog channels at the input
- small dimensions
- Simple clip mounting
- High IP protection class
Overview technical data
| Device name | IO-Link converter |
| Device type | IO-Link products |
| Series | IOC 074 |
| Article number | 07402.0-00 |
| Packaging unit | 1 Piece |
| Electrical protection | Reverse polarity protection, short-circuit proof |
| Protection class | III (SELV) |
| Protection type | IP65, IP66, IP67 |
| Material sealing | FKM |
| Casing | Stainless steel |
| AC/DC | DC |
| Operating voltage minimum | 24 V |
| Operating voltage tolerance | 18 V - 30 V |
| Nominal current | 62.5 mA |
| Frequency | 0 Hz |
| Power consumption | 1.5 W |
| Load resistance external | 250 Ohm |
| Operating temperature | -40 °C - 80 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection type | Connector plug |
| Connection | Male connector M12 IEC61076-2-101 4-pole A-coded, Female connector M12 IEC61076-2-101 5-pole A-coded |
| Design | IO-Link version 1.1 |
| Mounting | Clip |
| Installation position | variable |
| Setup height | 4000 m |
| Height | Ø14 mm |
| Width | Ø14 mm |
| Depth | 63 mm |
| Weight | 50 g |
