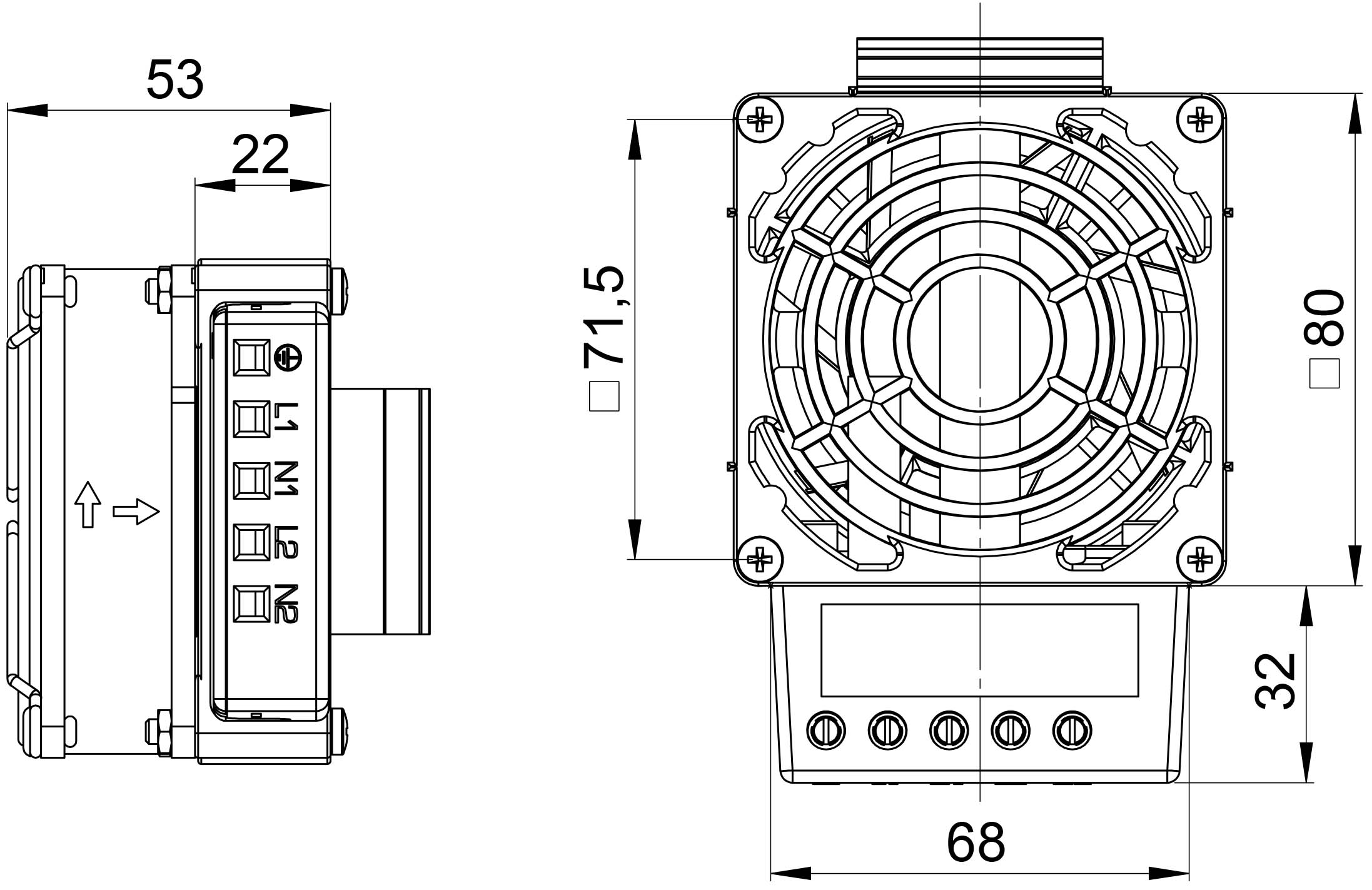

03102.0-00_vt_heizgeraet_typ_hvl_031_80mm

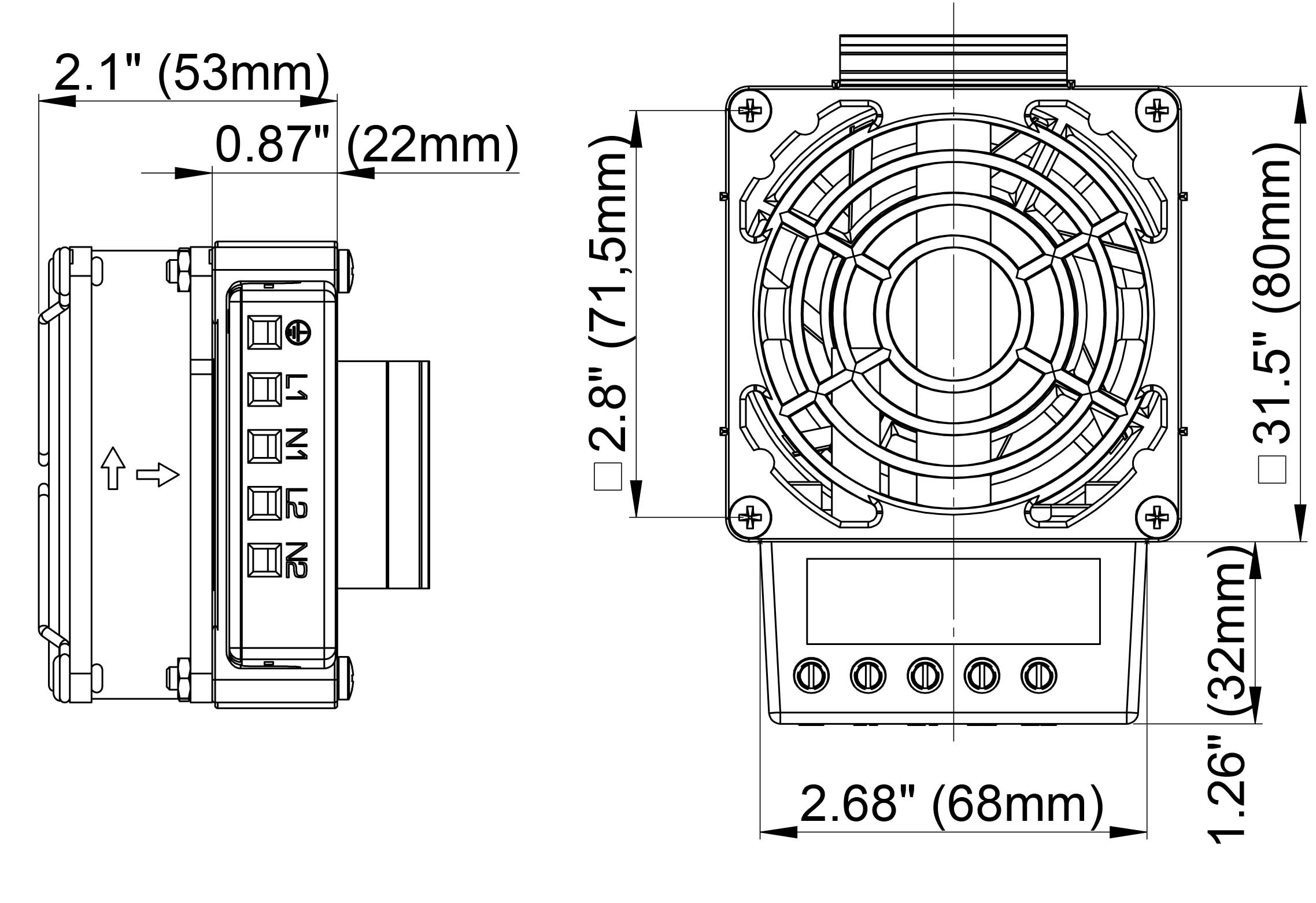

03102.0-00_vt_zoll_heizgeraet_typ_hvl_031_80mm

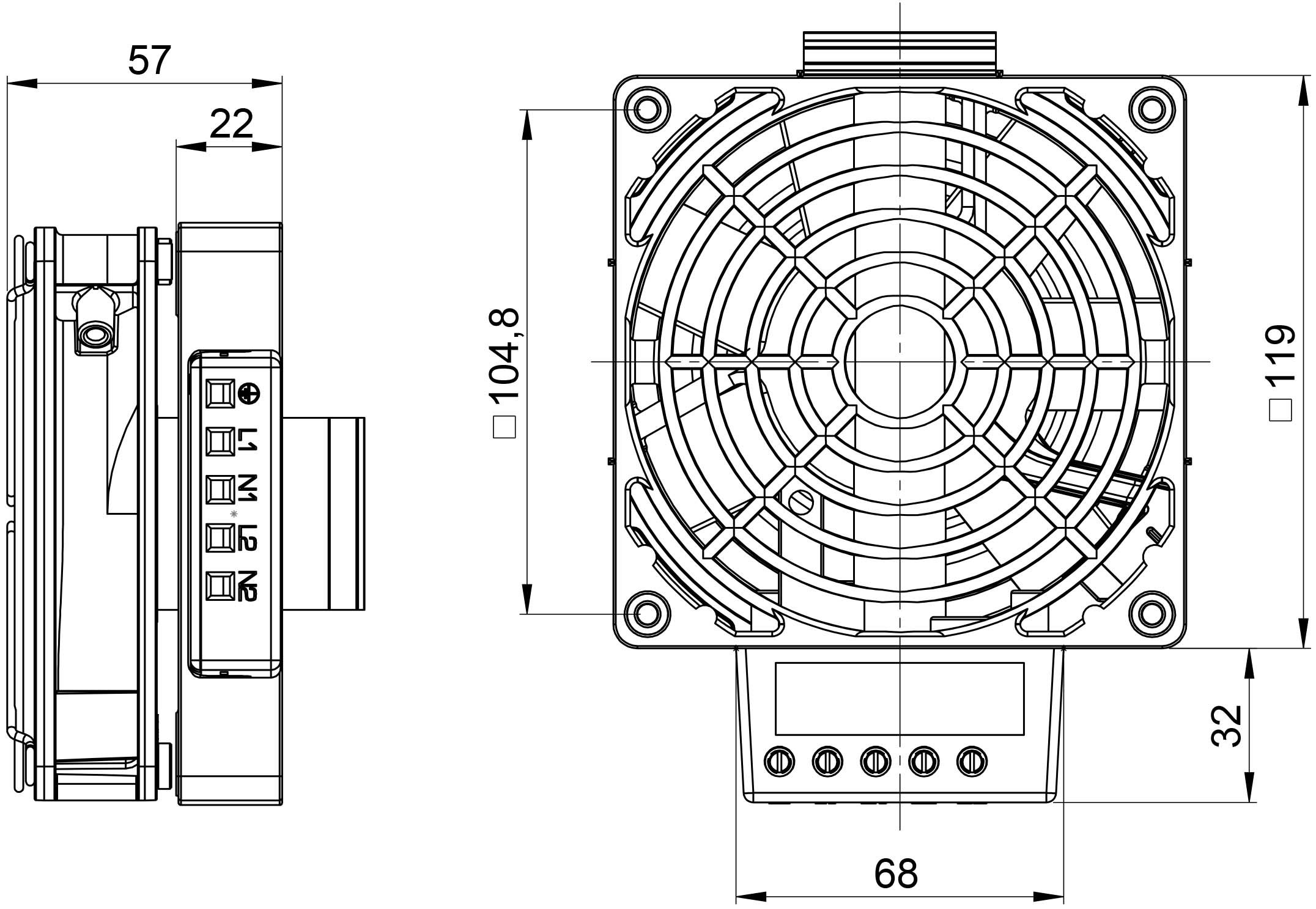

03115.0-00_vt_heizgeraet_typ_hvl_031_119mm

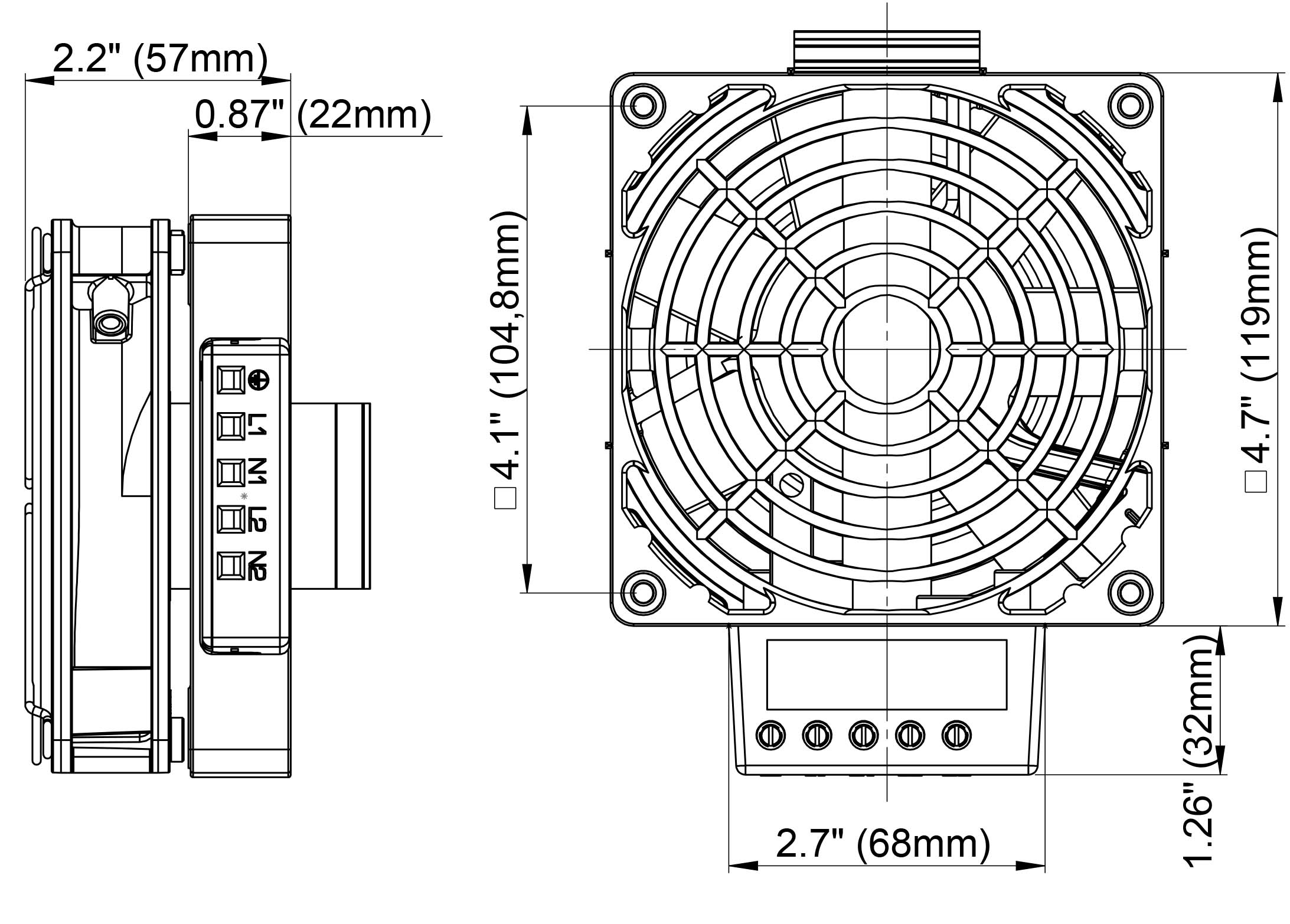

03115.0-00_vt_zoll_heizger則_typ_hvl_031_119mm

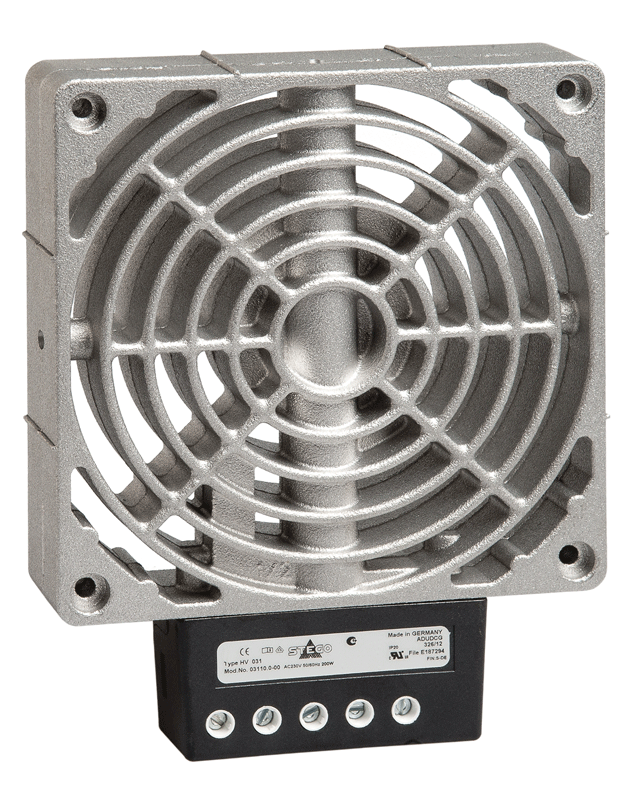

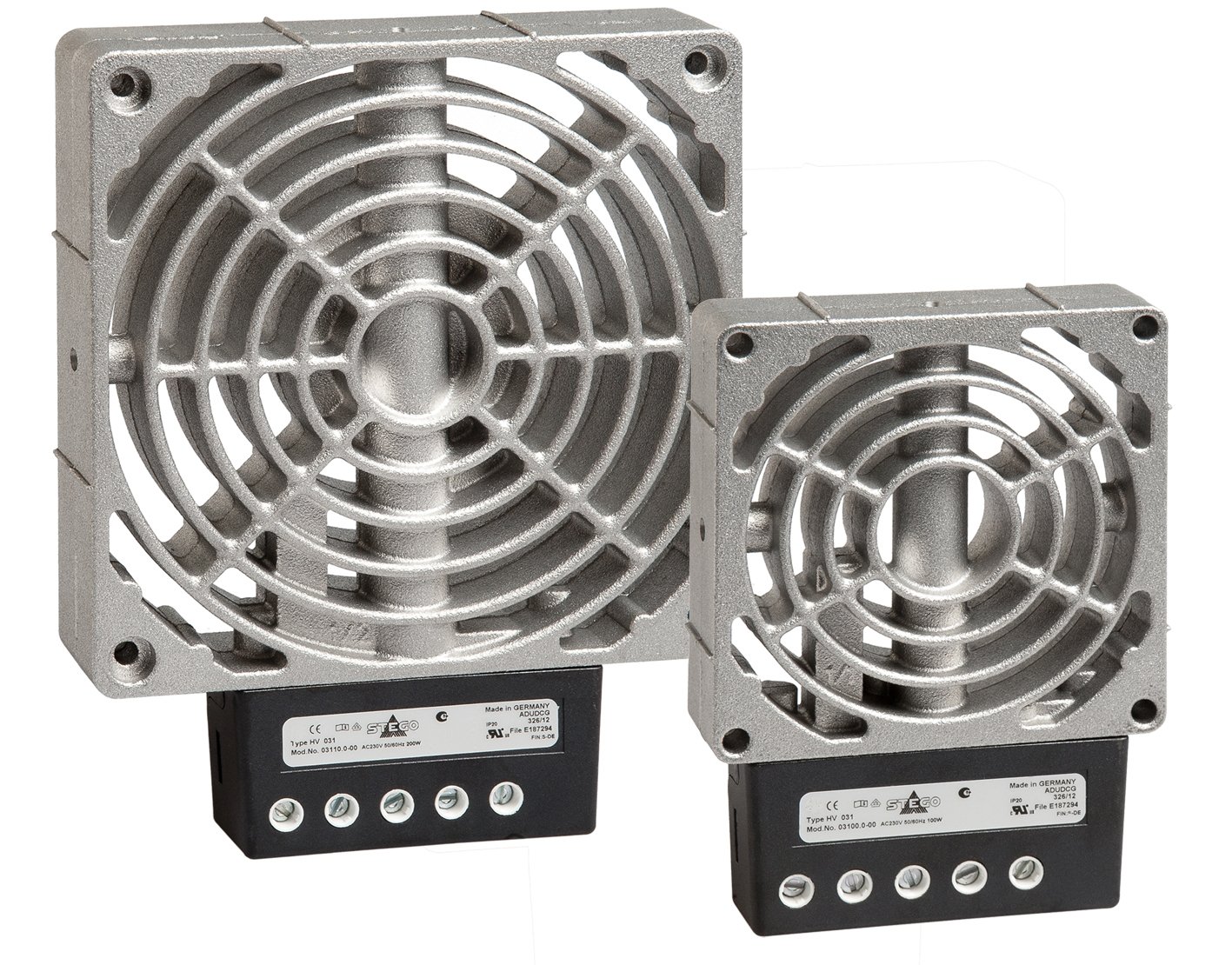

Enclosure heater without fan

HV 031

The space-saving fan heater for temperature control in enclosures, casings and technical installation spaces provides contactor protection against condensation. Resistance heater available in five power levels, each in AC 230 V and AC 120 V. HV 031 enclosure heaters are supplied without a fan. The installation of a fan is essential for operation.

Compact, flat construction
Overheating protection with automatic switch-off
Fan self-installation mandatory
Clip fixing for 35 mm DIN rail

Overview technical data

Device type	Fan heater
Temperature monitoring	Overheating protection in the event of fan failure with automatic reset
Protection class	I
Protection type	IP20
Connection case	Plastic to UL94 V-0, black
Heating element	High-performance heating cartridge
Heater element	Aluminium die casting
AC/DC	AC
Frequency	50;60 Hz
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Torque	0.8 Nmmax.
Mounting	Clip for 35 mm DIN rail
Installation position	Airflow direction "in" vertical / connection at the bottom
Height	22 mm
Note	Heating without fan Heating may only be operated in conjunction with a fan Heating may only be operated in conjunction with a fan (min. 150 m³/h). There is a risk of overheating!

Product variants

Article number	Operating voltage minimum	Operating voltage tolerance	Recommended backup fuse	Heating capacity minimum	Connection	Width	Depth	Weight	Datasheet
03100.0-00	230 V	208 V - 253 V	1 A	100 W	3-pole clamp 2.5 mm², torque 0.8 Nm	80 mm	112 mm	400 g	HV031-03100.0-00-Datasheet-EN.pdf
03100.9-00	120 V	108 V - 132 V	2 A	100 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	80 mm	112 mm	400 g	HV031-03100.9-00-Datasheet-EN.pdf
03101.0-00	230 V	208 V - 253 V	1.25 A	150 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	80 mm	112 mm	400 g	HV031-03101.0-00-Datasheet-EN.pdf
03101.9-00	120 V	108 V - 132 V	2.5 A	150 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	80 mm	112 mm	400 g	HV031-03101.9-00-Datasheet-EN.pdf
03110.0-00	230 V	208 V - 253 V	2 A	200 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03110.0-00-Datasheet-EN.pdf
03110.9-00	120 V	108 V - 132 V	3 A	200 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03110.9-00-Datasheet-EN.pdf
03111.0-00	230 V	208 V - 253 V	2 A	300 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03111.0-00-Datasheet-EN.pdf
03111.9-00	120 V	108 V - 132 V	4 A	300 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03111.9-00-Datasheet-EN.pdf
03112.0-00	230 V	208 V - 253 V	4 A	400 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03112.0-00-Datasheet-EN.pdf
03112.9-00	120 V	108 V - 132 V	6.3 A	400 W	3-pole clamp 2.5 mm², torque 0.8 Nm max.	119 mm	151 mm	500 g	HV031-03112.9-00-Datasheet-EN.pdf
