Filter fan Plus - size 1 (92 X 92 mm)
FPI 018
Filter fan FPI size 1 (92 x 92 mm) for air conditioning enclosures and casings. Configuration: FPI - airflow direction "in" (standard version: blowing). Optimum air conditioning for your enclosure: The Filter Fan Plus blows cooler outside air into the enclosure. The warmer air inside the enclosure is discharged via the exit filter. The resulting air flow cools the enclosure and protects the components from overheating.
- Only one filter mat required (on the filter fan)
- Easy installation thanks to mounting frame with twist locks
- Effective air circulation
- Accessories: Hose-proof hood to increase the protection type to IP56
Overview technical data
| Device name | Filter fan Plus - size 1 (92 X 92 mm) |
| Device type | Filter fan Plus (DC) |
| Series | FPI 018 |
| Protection class | II |
| Protection type | IP54 |
| Material hood | Plastic to UL94 V-0, light grey |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | G3 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Axial fan | Fan body aluminium, rotor metal |
| Average emission sound pressure level | 49 dB(A) |
| Service life | >70000 h |
| Operating temperature | -20 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Connection | 2 stranded wires, 300 mm |
| Mounting frame | With 4 built-in rotary latches for locking |

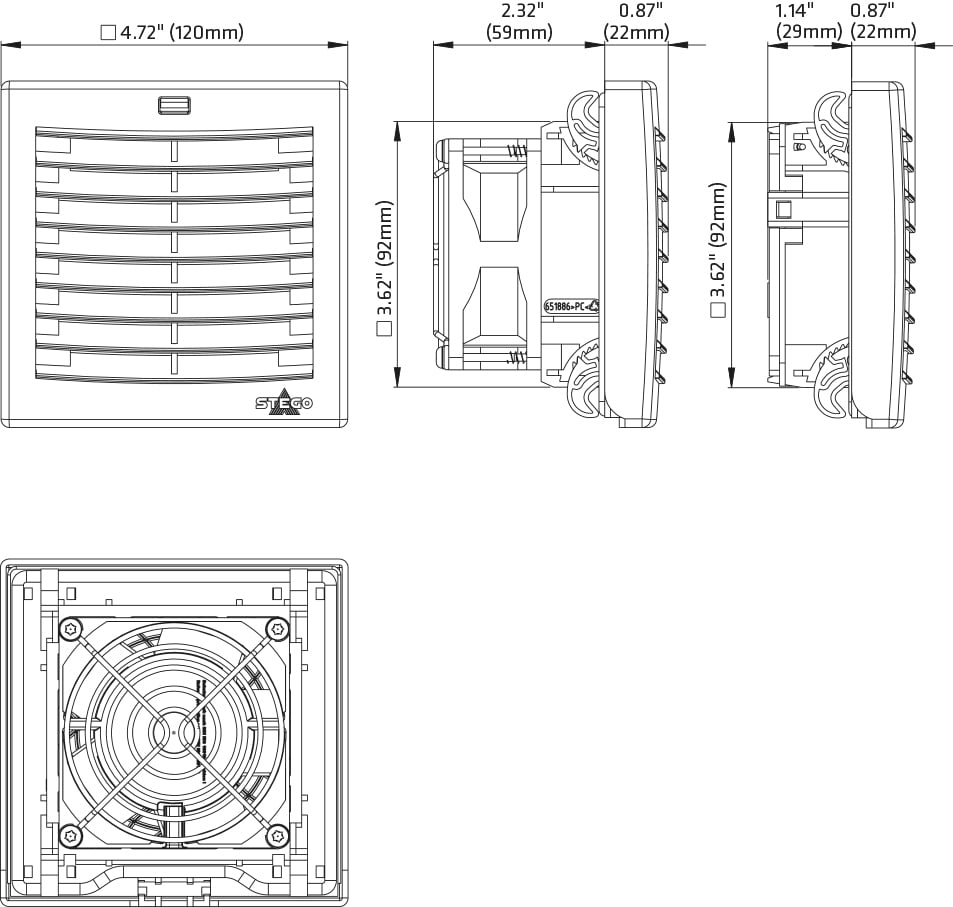

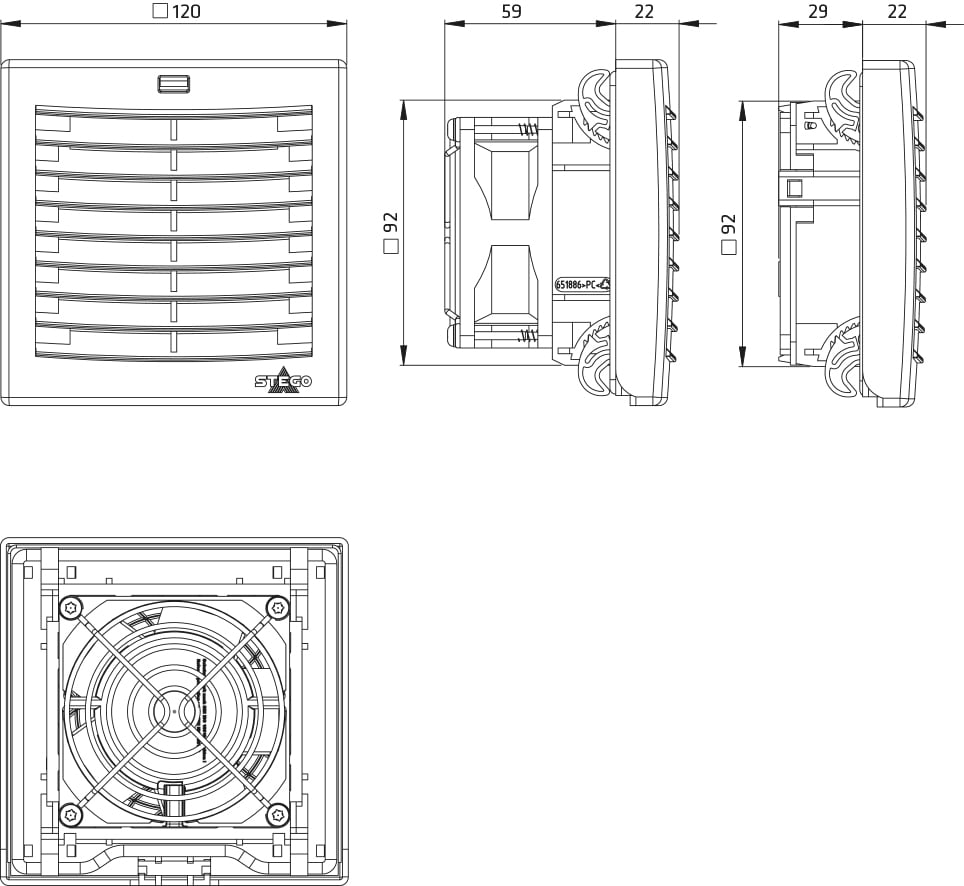

| Height | 120 mm |
| Width | 120 mm |
| Depth | 81 mm |
| Installation depth | 59 mm |
| Weight | 300 g |
| Mounting cut-out | 92 x 92 mm |
| Item number accessories 1 | 08633.0-00 |
| Item number accessories 2 | 11870.0-00 |
| Item number accessories 3 | 08670.0-00 |
| Accessory 1 | Replacement filter mat FM 086 |
| Accessory 2 | FPI 118 exit filter with air-flap outlet technology |
| Accessory 3 | Water jet protection hood FFH 086 |
| Note | Drilling pattern for screw fixing marked on mounting frame. |
| Protection type UL | NEMA Type 12 |
