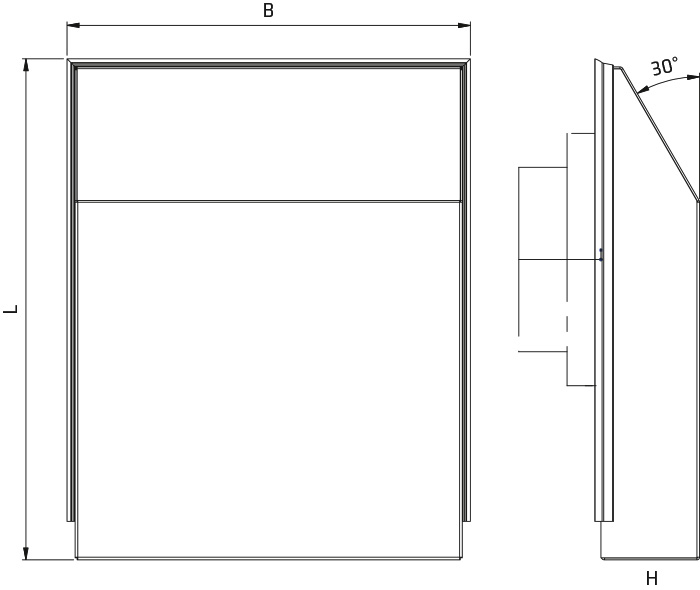

2017-04-ffh086-drawing

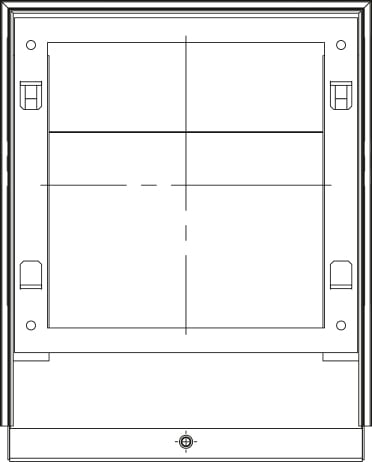

2017-09-ffh086-drawing-frame

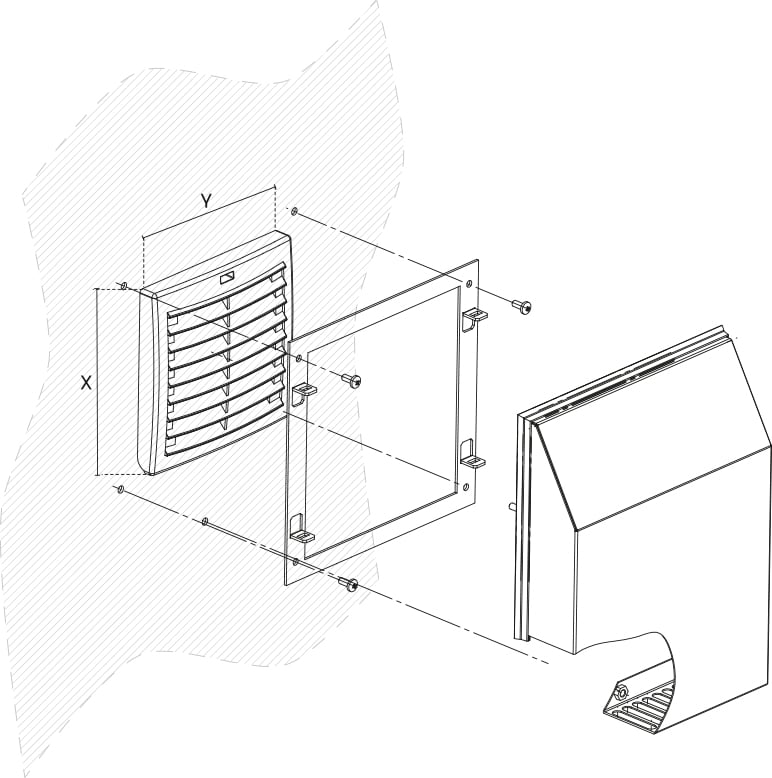

2017-09-ffh086-installationssketch

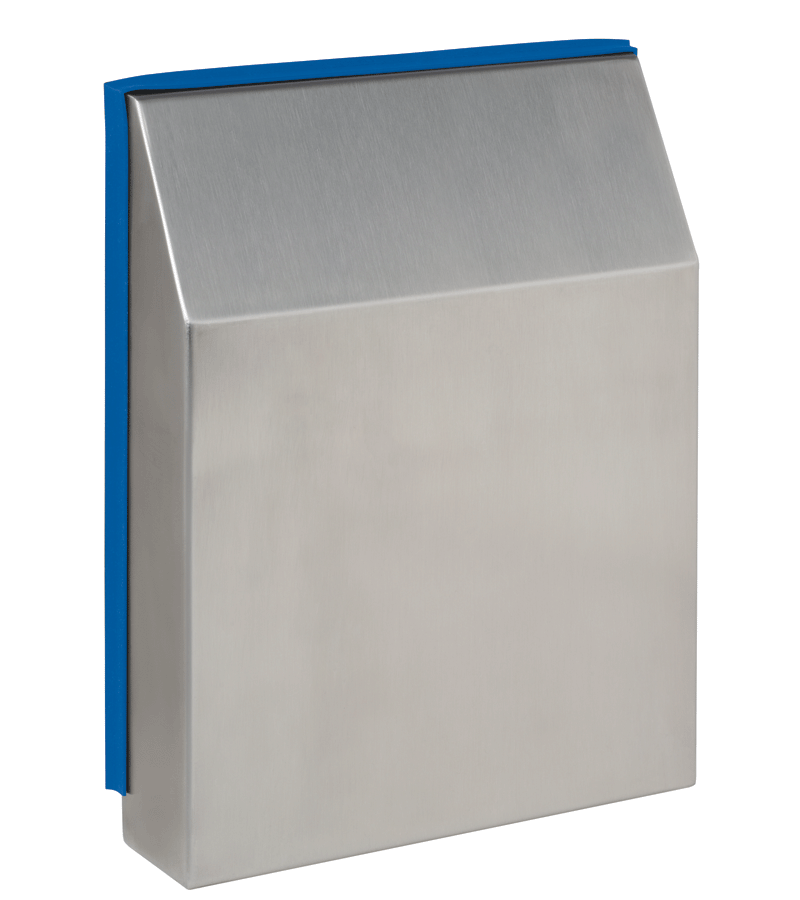

Hose-proof hood

FFH 086

Hose-proof hood made of stainless steel VA increases the protection type of filter fans Plus FPI 018 and FPO 018 to IP56. Application: Outdoors and in industrial applications with harsh environmental conditions.

Increasing the protection type
Easy to clean
Filter mat change from outside
Impact-resistant, robust
Safe against unauthorized removal
Weather resistant
versatile
Protective grid

EAC

VDE

Overview technical data

Device name	Hose-proof hood
Device type	Accessories
Series	FFH 086
Protection type	IP56
Material sealing	Silicone, food safe
Material hood	Stainless steel
Operating temperature
Storage temperature
Mounting	Screw fixing
Note	For installation over STEGO filter fans FPI/FPO 018 and FF 018 and when the seal is fully seated.
Protection type UL	Nema Type 4/4x

Product variants

Article number	Cut-out dimension	Height	Width	Depth	Weight	Request	CAD	Datasheet
08670.0-00	FPI/FPO 018 92 x 92 mm	214 mm	195 mm	48 mm	800 g			08670.0-00-FFH086-Datasheet-EN.pdf
08671.0-00	FPI/FPO 018 124 x 124 mm	279 mm	225 mm	58 mm	1200 g			08671.0-00-FFH086-Datasheet-EN.pdf
08672.0-00	FPI/FPO 018 176 x 176 mm	359 mm	294 mm	68 mm	2000 g			08672.0-00-FFH086-Datasheet-EN.pdf
08673.0-00	FPI/FPO 018 223 x 223 mm	415 mm	369 mm	78 mm	2800 g			08673.0-00-FFH086-Datasheet-EN.pdf
08674.0-00	FPI/FPO 018 291 x 291 mm	485 mm	409 mm	103 mm	3700 g			08674.0-00-FFH086-Datasheet-EN.pdf
