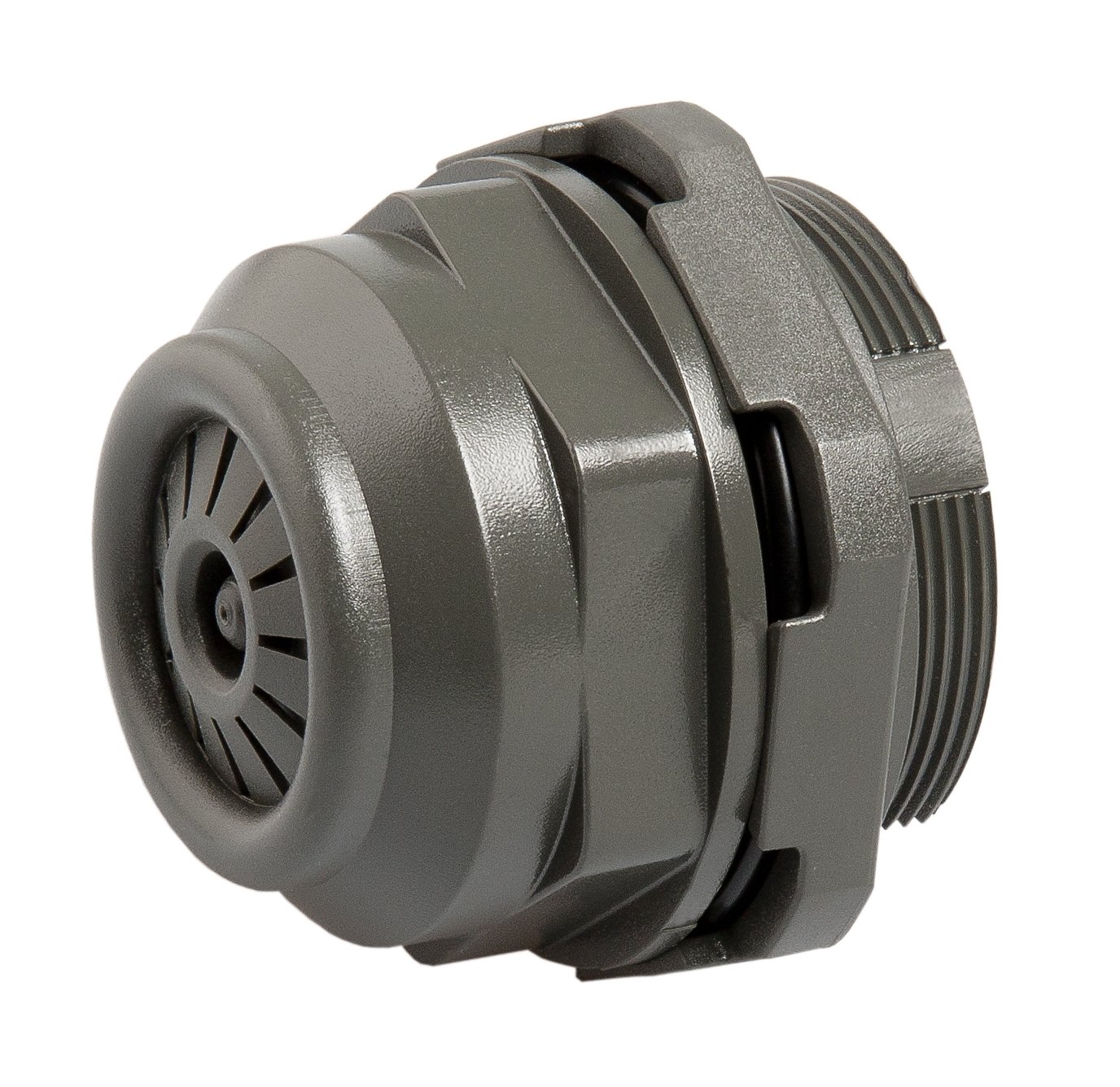

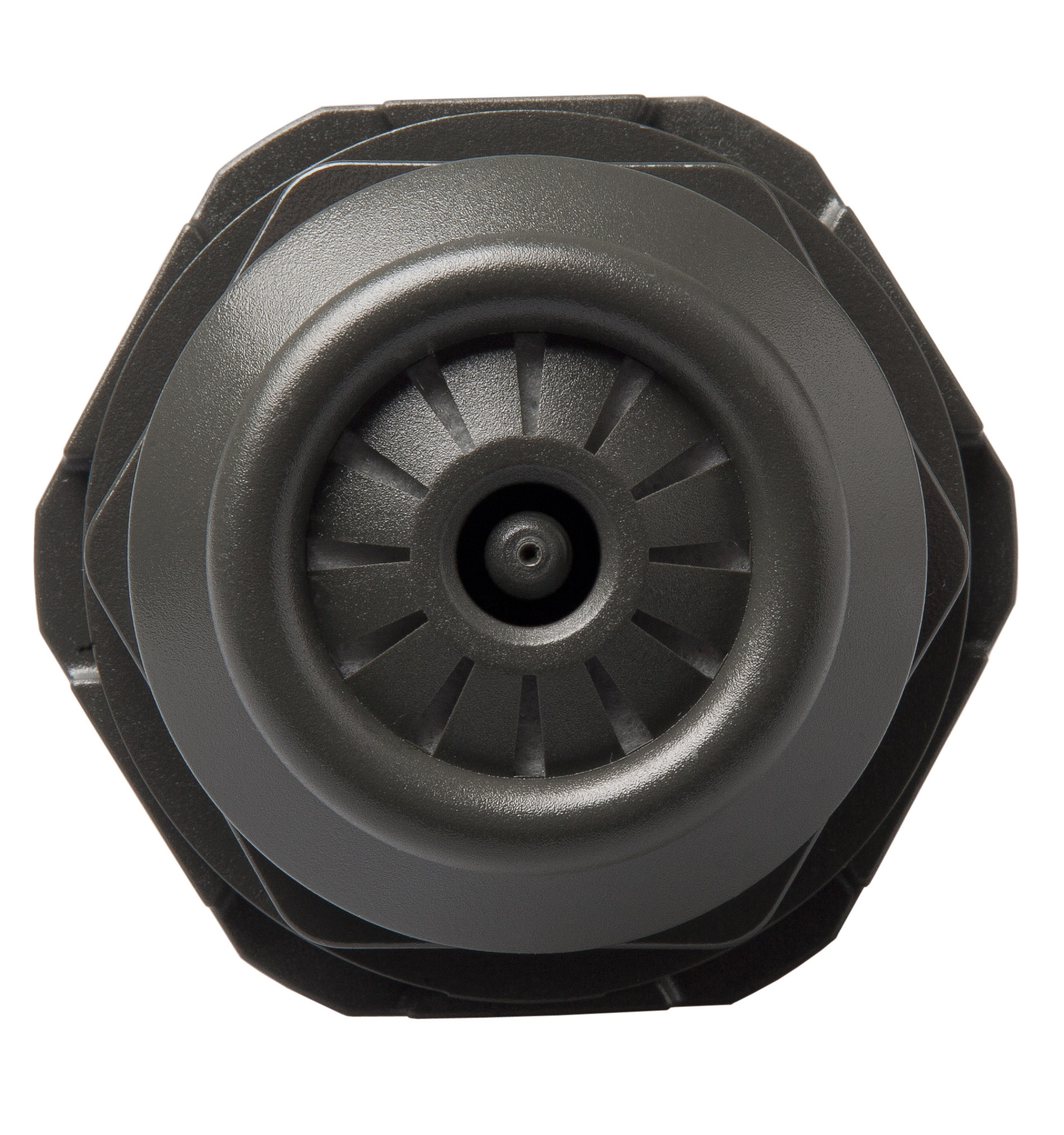

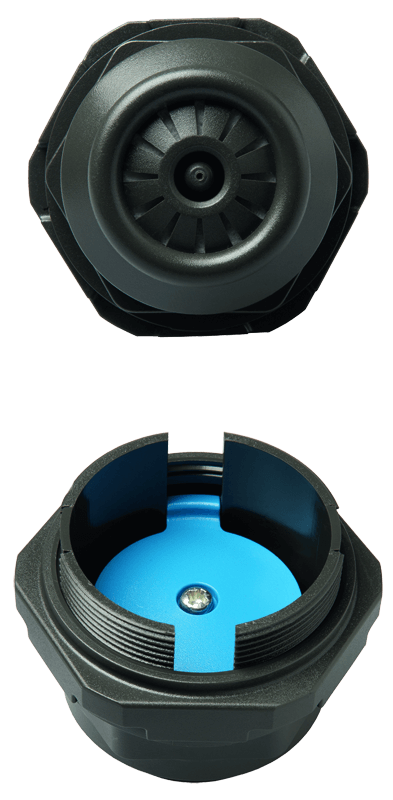

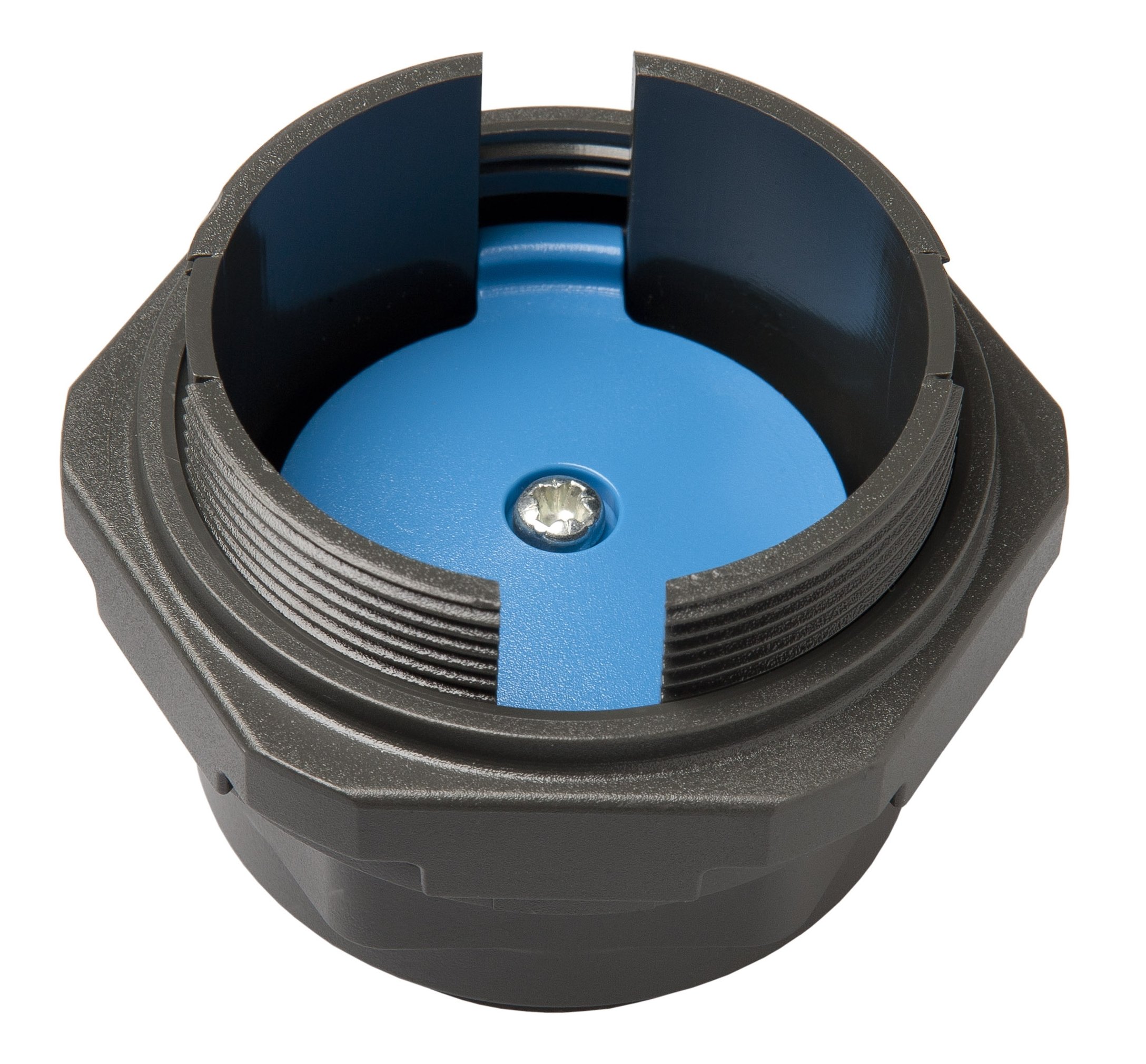

Drainage device

DD 084

Drainage device for draining condensation from casings. In compliance with protection type IP66. No splash water penetrates as a water flow-through membrane drains the enclosure by capillary action.

Protection type IP66
Simple installation
Weather-resistant, splash-proof

EAC

Overview technical data

Device type	Other accessories
Protection type	IP66/IP69K(EN40050-9)
Material sealing	NBR
Material hood	Plastic, umbra gray
Casing	Plastic, black
Operating temperature	-45 °C - 70 °C
Storage temperature	-45 °C - 70 °C

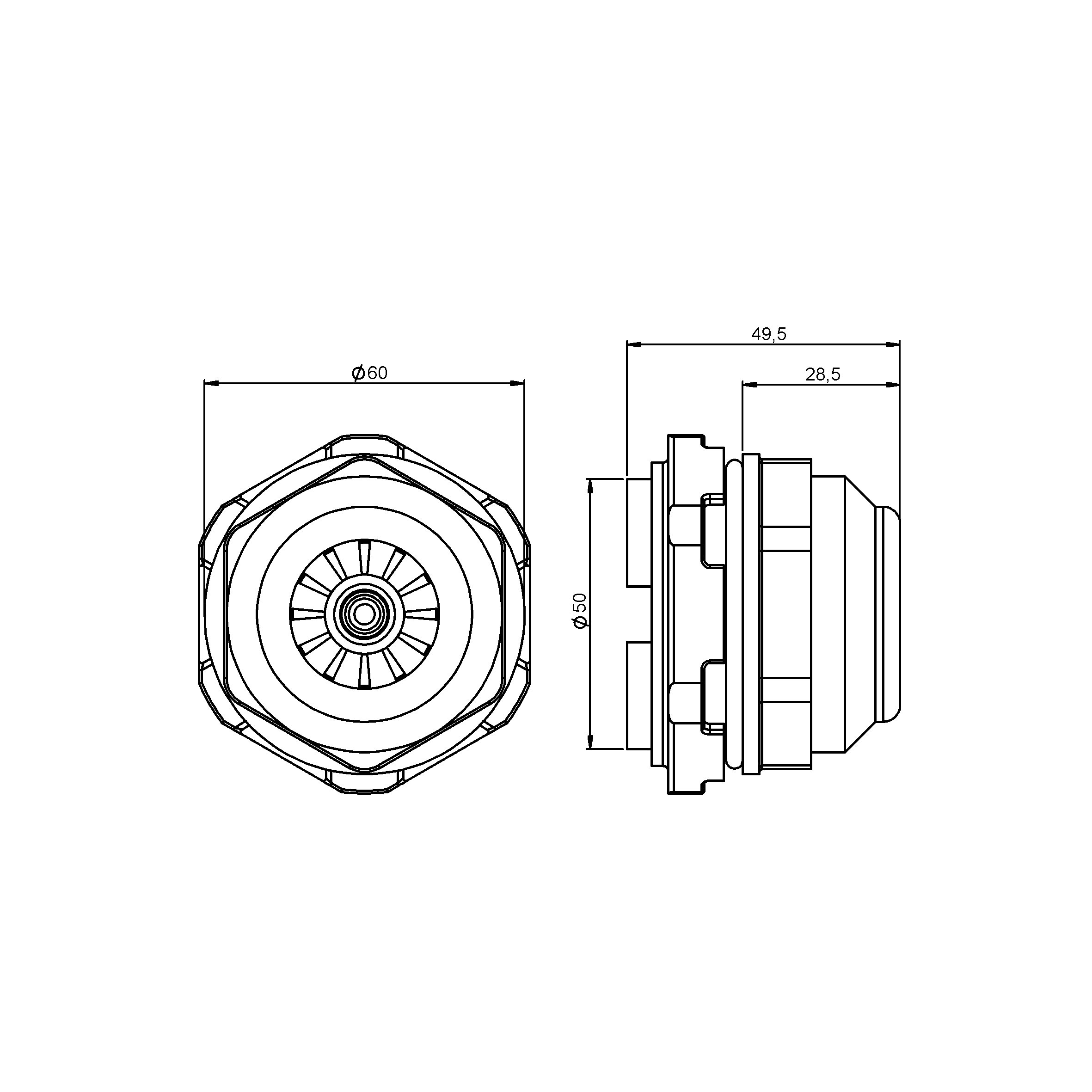

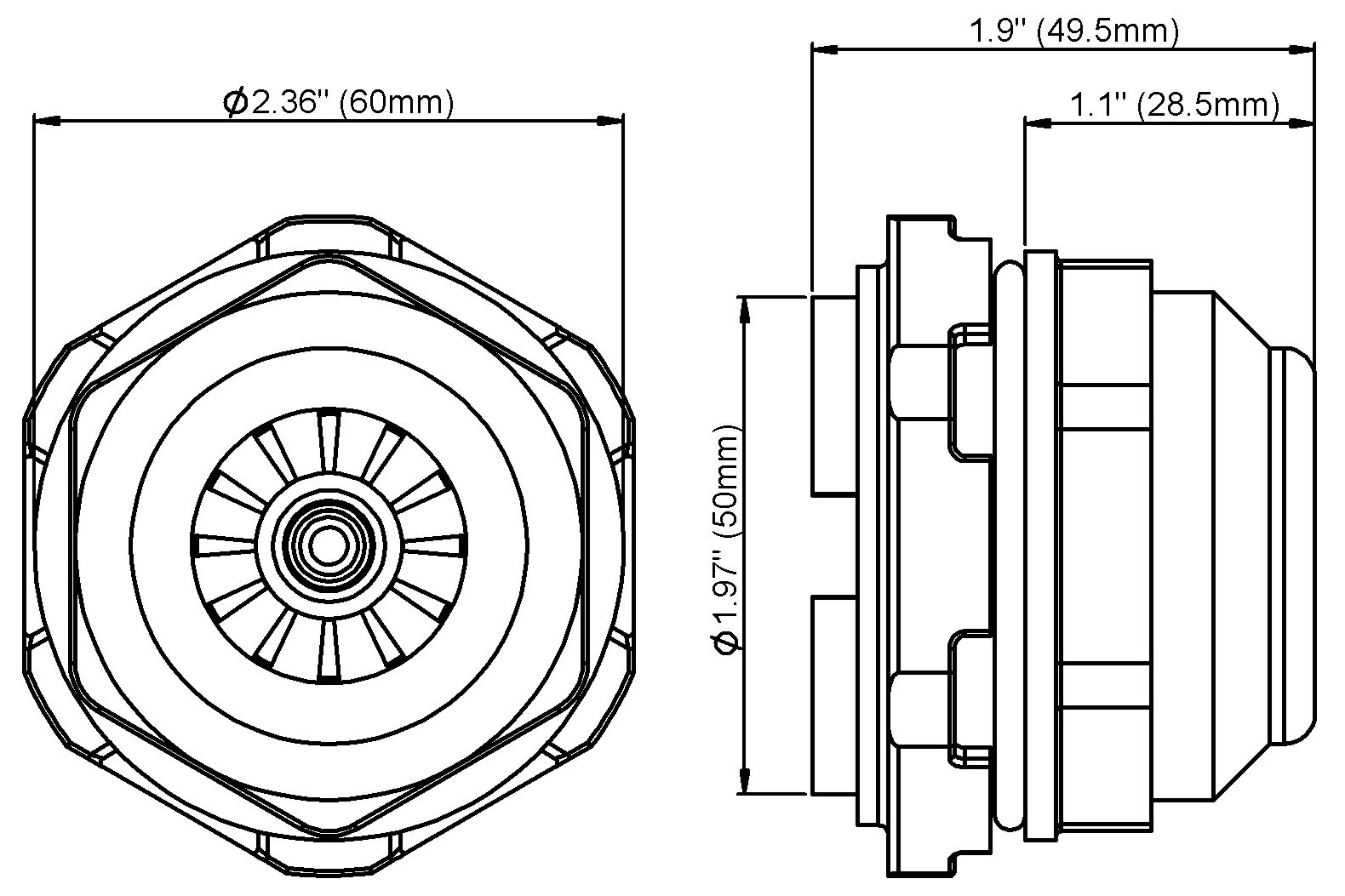

Cut-out dimension	Ø50 +0,5 mm

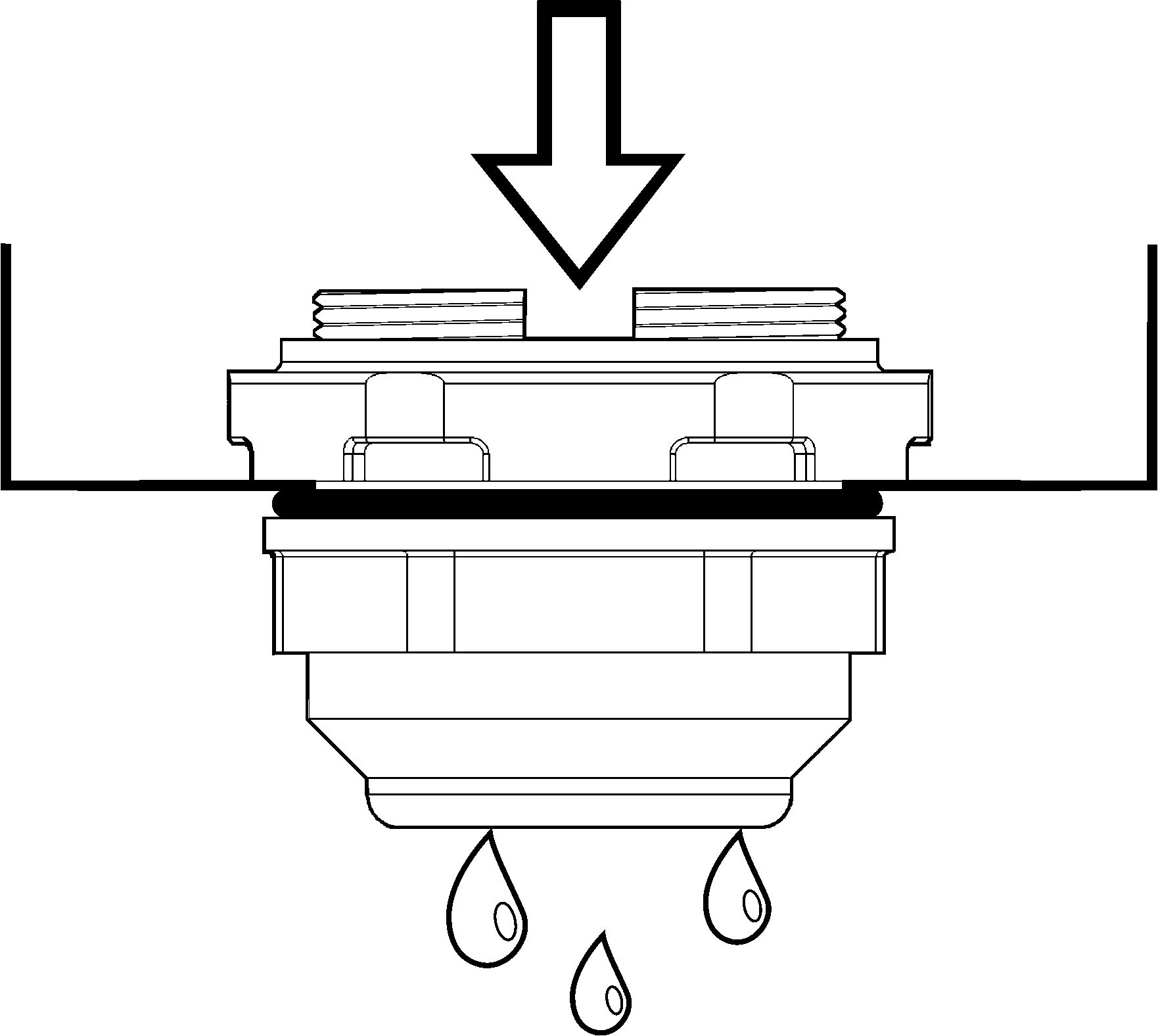

Mounting	M50 x 1.5
Height	Ø60 mm
Width	Ø60 mm
Depth	37 mm
Installation depth	21 mm
Weight	60 g
Note	200 ml/h with a water column of 5 mm Permissible wall thickness 0.5 - 5.5 mm

Product variants

Article number	Device name	Device type	Series	Protection type	Material sealing	Material hood	Casing	Operating temperature	Storage temperature	Cut-out dimension	Mounting	Height	Width	Depth	Installation depth	Weight	Note	Request	CAD	Datasheet
08410.0-00	Drainage device	Other accessories	DD 084	IP66/IP69K(EN40050-9)	NBR	Plastic, umbra gray	Plastic, black	-45 °C - 70 °C	-45 °C - 70 °C	Ø50 +0,5 mm	M50 x 1.5	Ø60 mm	Ø60 mm	37 mm	21 mm	60 g	200 ml/h with a water column of 5 mm Permissible wall thickness 0.5 - 5.5 mm			DD084-08410.0-00-Datasheet-EN.pdf
