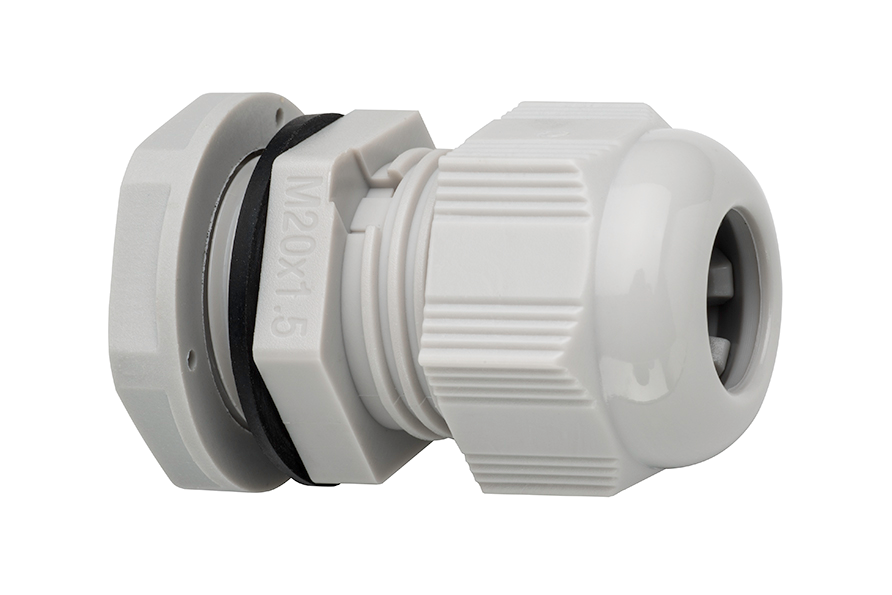

Ventilation cable gland
DAK 284
Passive pressure compensation element for the safe insertion of cables into a casing. Levels temperature-induced pressure differences between the inside and outside of the enclosure. Air humidity escapes through a waterproof filter. The formation of condensate is prevented.
- Thread sizes: M12, M16 and M20
- NBR sealing gasket
- Water- and dirt-proof
- Protection type IP66 / IP67
Overview technical data
| Device name | Ventilation cable gland |
| Device type | Pressure compensation element |
| Series | DAK 284 |
| Protection type | IP66/IP67 |
| Material sealing | NBR |
| Material hood | Plastic, light grey |
| Filter mat | waterproof membrane |
| Casing | Plastic, light grey |
| Operating temperature | -20 °C - 80 °C |
| Storage temperature | -20 °C - 80 °C |
