Enclosure heater

CSK 060

This compact PTC enclosure heater is designed to protect against condensation in your enclosure and installation space. Safety: The plastic-coated heater body reaches a maximum temperature of +85 °C on its surface and safely protects applications from heat.

Wide voltage range for electrical connection
PTC heating element with dynamic response behavior
Energy-saving, temperature-limiting, touch-safe
Designed for continuous operation
Quick installation with clip fixing for 35 mm DIN rail

Overview technical data

Device type	Convection heaters Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC resistor (PTC)
Casing	Plastic to UL94 V-0, black
AC/DC	AC DC
Operating voltage	120 V - 240 V
Operating voltage tolerance	110 V - 265 V
Frequency	50;60 Hz
Surface temperature	< + 85 °C
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C

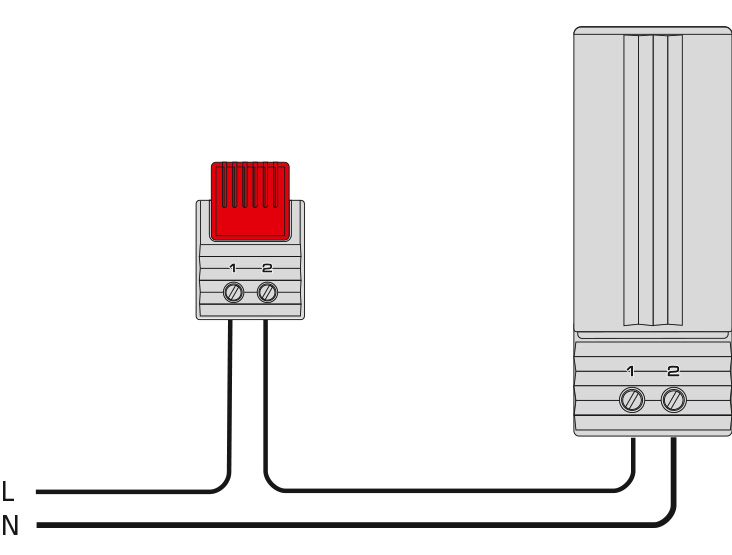

Connection type	Connection terminal
Torque	0.8 Nmmax.
Connection	2-pole clamp 2.5 mm², max. torque 0.8 Nm
Mounting	Clip for 35 mm DIN rail
Installation position	Airflow direction "in" vertical / connection at the bottom

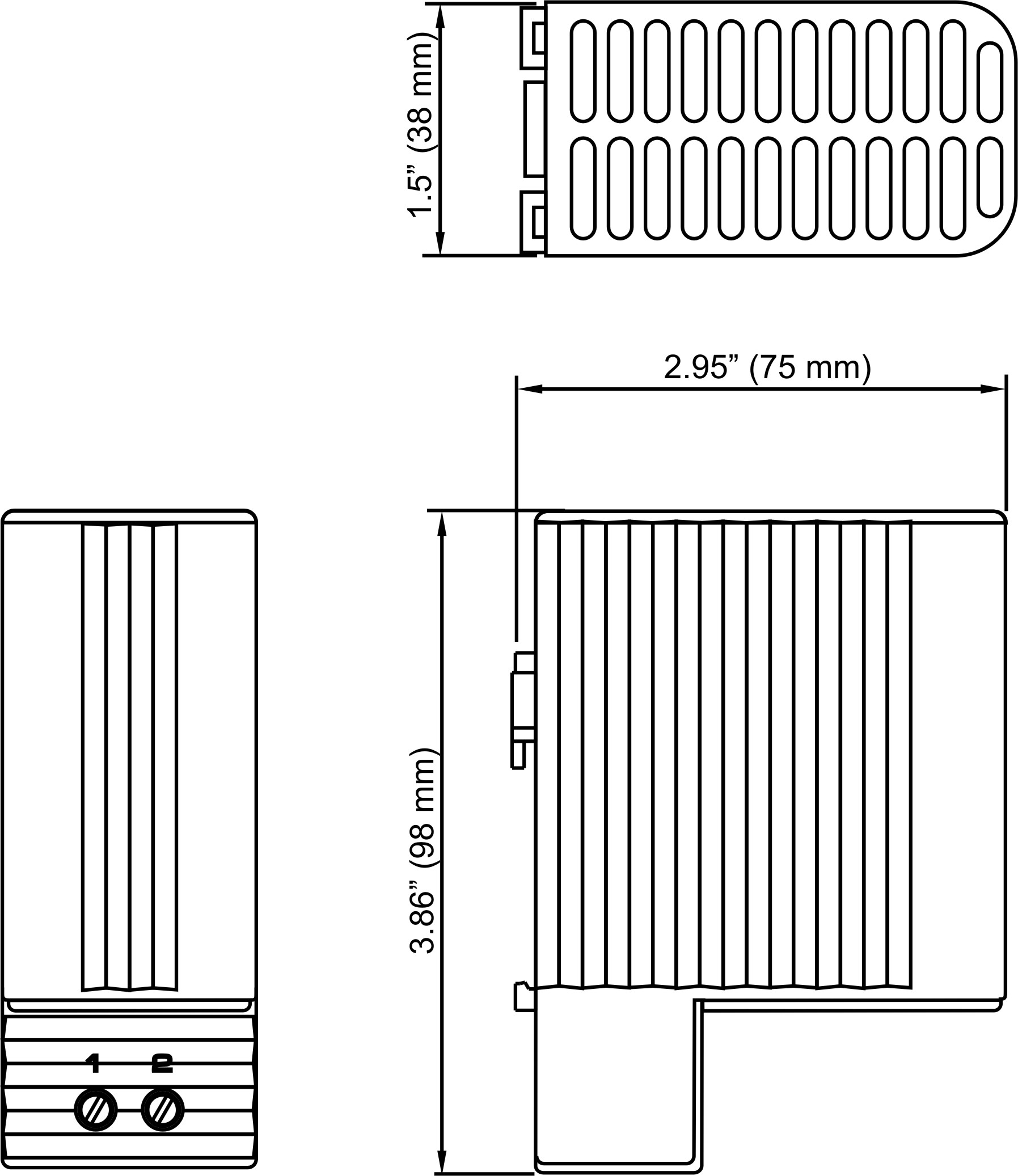

Height	98 mm
Width	38 mm
Depth	75 mm
Note	Other voltages on request Surface temperature according to VDE 0100, except upper grid surface Surface temperature according to VDE 0100, except upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature. When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %.

Product variants

Article number	Device name	Device type	Series	Follow-up article	Protection class	Protection type	Heating element	Casing	AC/DC	Operating voltage	Operating voltage tolerance	Inrush current maximum	Recommended backup fuse	Frequency	Heating capacity minimum	Switching differential	Switching differential tolerance	Surface temperature	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection type	Torque	Connection	Mounting	Installation position	Height	Width	Depth	Weight	Note	Datasheet
06030.0-00	Enclosure heater	Convection heaters Touchsafe	CSK 060	06401.0-00	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black	AC DC	120 V - 240 V	110 V - 265 V	2.5 A	4 A	50;60 Hz	20 W			< + 85 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	0.8 Nmmax.	2-pole clamp 2.5 mm², max. torque 0.8 Nm	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	98 mm	38 mm	75 mm	300 g	Other voltages on request Surface temperature according to VDE 0100, except upper grid surface Surface temperature according to VDE 0100, except upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature. When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %.	CSK060-06030.0-00-Datasheet-EN.pdf
06040.0-00	Enclosure heater	Convection heaters Touchsafe	CSK 060	06401.0-00	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black	AC DC	120 V - 240 V	110 V - 265 V	1 A	2 A	50;60 Hz	10 W			< + 85 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	0.8 Nmmax.	2-pole clamp 2.5 mm², max. torque 0.8 Nm	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	98 mm	38 mm	75 mm	200 g	Other voltages on request Surface temperature according to VDE 0100, except upper grid surface Surface temperature according to VDE 0100, except upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature. When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %.	CSK060-06040.0-00-Datasheet-EN.pdf
06050.0-00	Enclosure heater	Convection heaters Touchsafe	CSK 060	06402.0-00	II	IP20	PTC resistor (PTC)	Plastic to UL94 V-0, black	AC DC	120 V - 240 V	110 V - 265 V	3.8 A	4 A	50;60 Hz	30 W	4 K	± 1 K	< + 85 °C	-45 °C - 70 °C	≤90 % RH	≤90 % RH	-45 °C - 70 °C	Connection terminal	0.8 Nmmax.	2-pole clamp 2.5 mm², max. torque 0.8 Nm	Clip for 35 mm DIN rail	Airflow direction "in" vertical / connection at the bottom	98 mm	38 mm	75 mm	300 g	Other voltages on request Surface temperature according to VDE 0100, except upper grid surface Surface temperature according to VDE 0100, except upper grid surface Heating capacity measured at +20°C (+68°F) ambient temperature. When operating under AC/DC 140 V, the heating capacity is reduced by approx. 10 %.	CSK060-06050.0-00-Datasheet-EN.pdf
