New: Enclosure heater with fan Basic - Available to order from 06/2025
CS 032

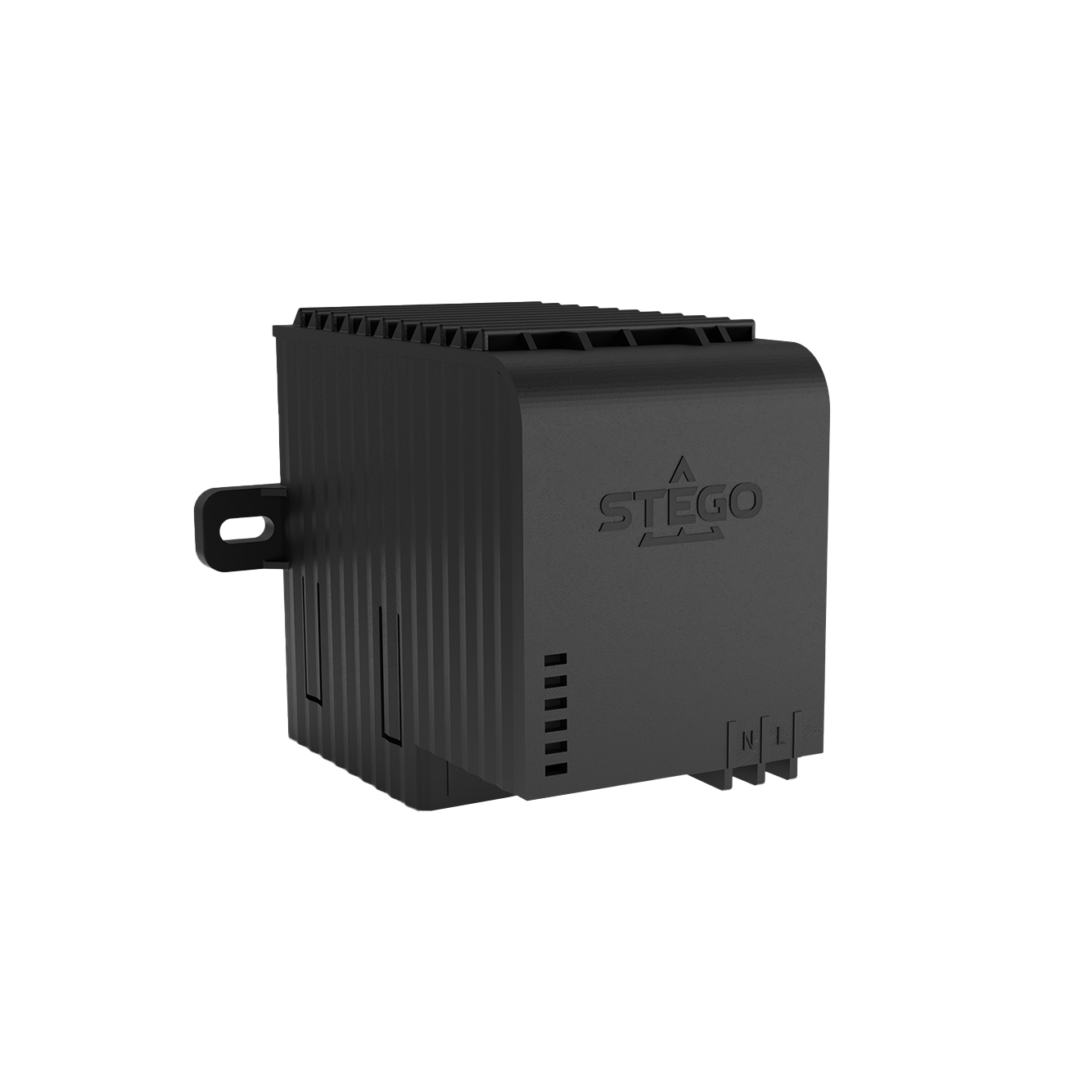

Enclosure heater CS 032 Basic: Compact and equipped with a fan and PTC heating element, offers reliable protection against frost and condensation. A touch-safe plastic sheathing ensures safe working conditions, while push-in terminals make electrical contacting quick and stable. With heating capacities of 600, 800 and 1,000 W, the heating is versatile.
- Powerful PTC heating elements in a compact casing
- Push-in terminals for fast and safe electrical contacting
- Mounting kit incl. screw fixing and clip fixing for 35 mm DIN rail
- User safety: Touch-safe
Overview technical data
| Device name | New: Enclosure heater with fan Basic - Available to order from 06/2025 |
| Device type | Fan heater Touchsafe |
| Series | CS 032 |
| Electrical protection | Overvoltage protection |
| Temperature monitoring | Overheating protection in the event of fan failure (not reversible) |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Casing | Plastic to UL94 V-0, black |
| AC/DC | AC |
| Inrush current duration | 12 s |
| Frequency | 50;60 Hz |
| Service life | >50000 h |
| Surface temperature | < + 80 °C |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Connection type | Connection terminal (push-in) |
| Connection | 2 x stranded wire 1.0 - 2.5 mm² (with wire end ferrule) and rigid wire 1.0 - 2.5 mm² |
| Mounting | Clip for 35 mm DIN rail screw flange |
| Installation position | Airflow direction "in" vertical and lateral |
| Setup height | 3000 m |

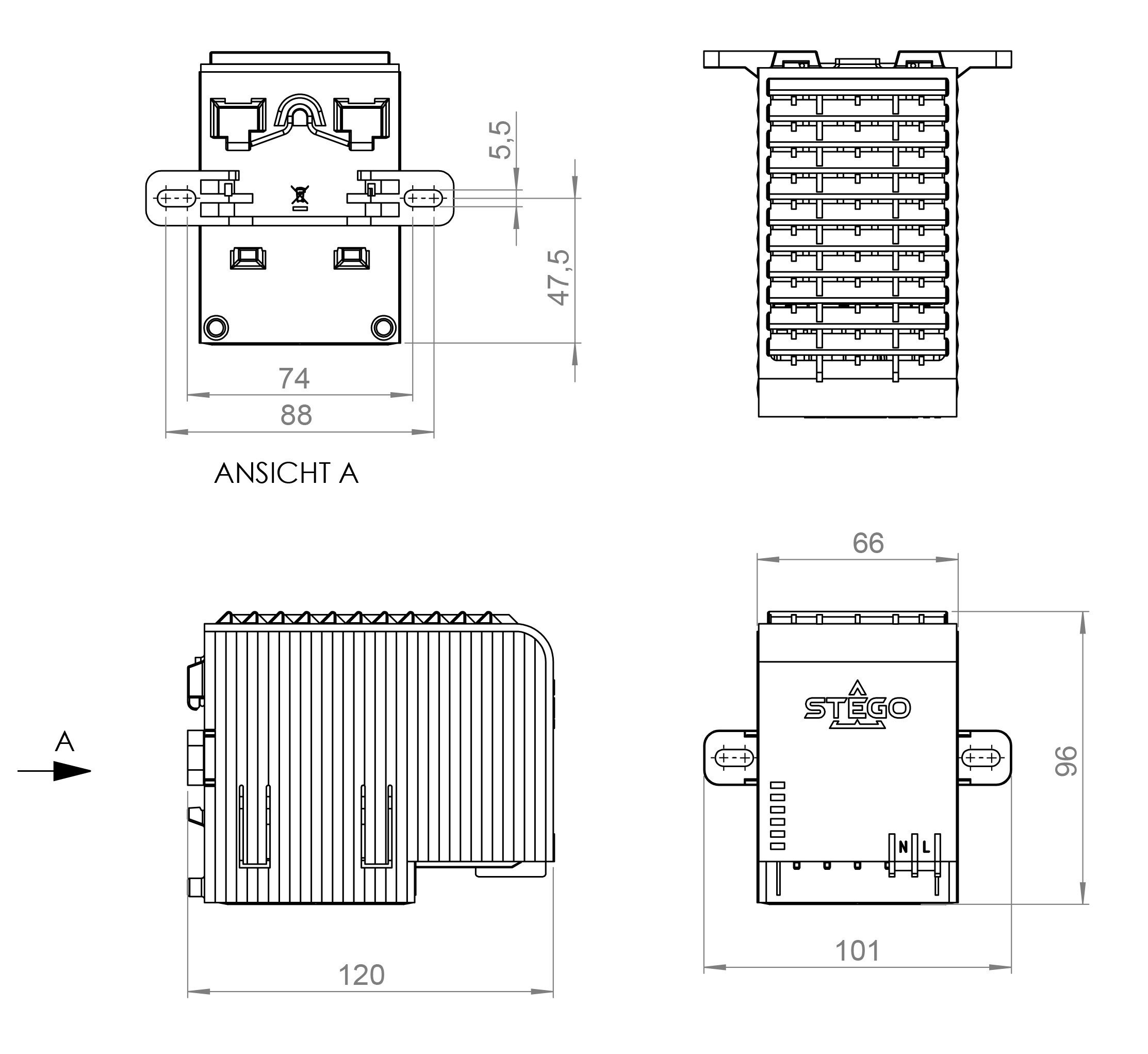

| Height | 96 mm |
| Width | 66 mm |
| Depth | 120 mm |
| Weight | 500 g |
