Enclosure heater with fan

CR 130

This compact high-performance fan heater is used to protect against frost and condensation in enclosures and cabinets. It is a combination of high performance cartridge heater and fan and thus achieves a high heating and air flow. CR 130 versions allow easy mounting on the casing wall of an enclosure. Available with integrated fixed hygrostat or as a thermostat version.

High performance cartridge heater
Temperature cut-out as overheating protection
Choice of clip or screw fixing
Integrated thermostat or hygrostat

Overview technical data

Device type	Fan heater;Touchsafe
Temperature monitoring	Overheating protection in the event of fan failure with automatic reset, additional contactor with irreversible fuse
Protection class	II
Protection type	IP20
Heating element	High-performance heating cartridge
Heater element	Aluminum profile
Casing	Plastic to UL94 V-0, black
AC/DC	AC
Frequency	50;60 Hz
Heating capacity	950 W
Axial fan	160 m³/h
Service life	>50000 h
Switching differential	7 K
Switching differential tolerance
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Torque	0,8 Nmmax.
Connection	2-pole max. 2.5 mm² with strain relief
Mounting	Clip for 35 mm DIN rail;Screw fixing
Installation position	Airflow direction "in" vertical / connection at the bottom

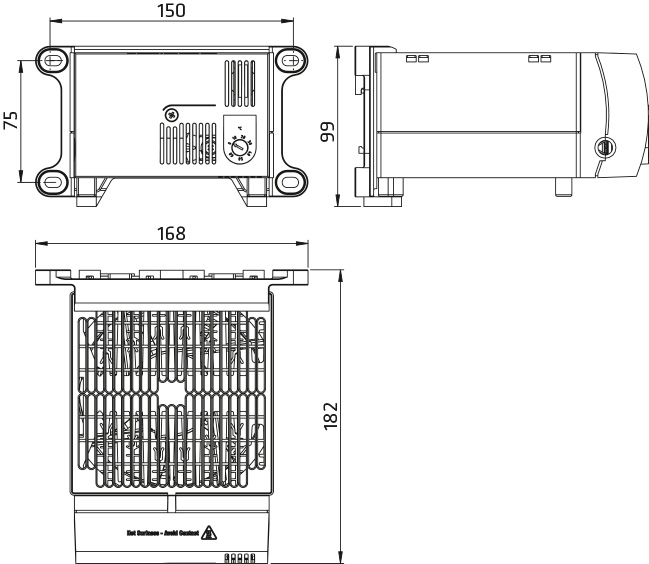

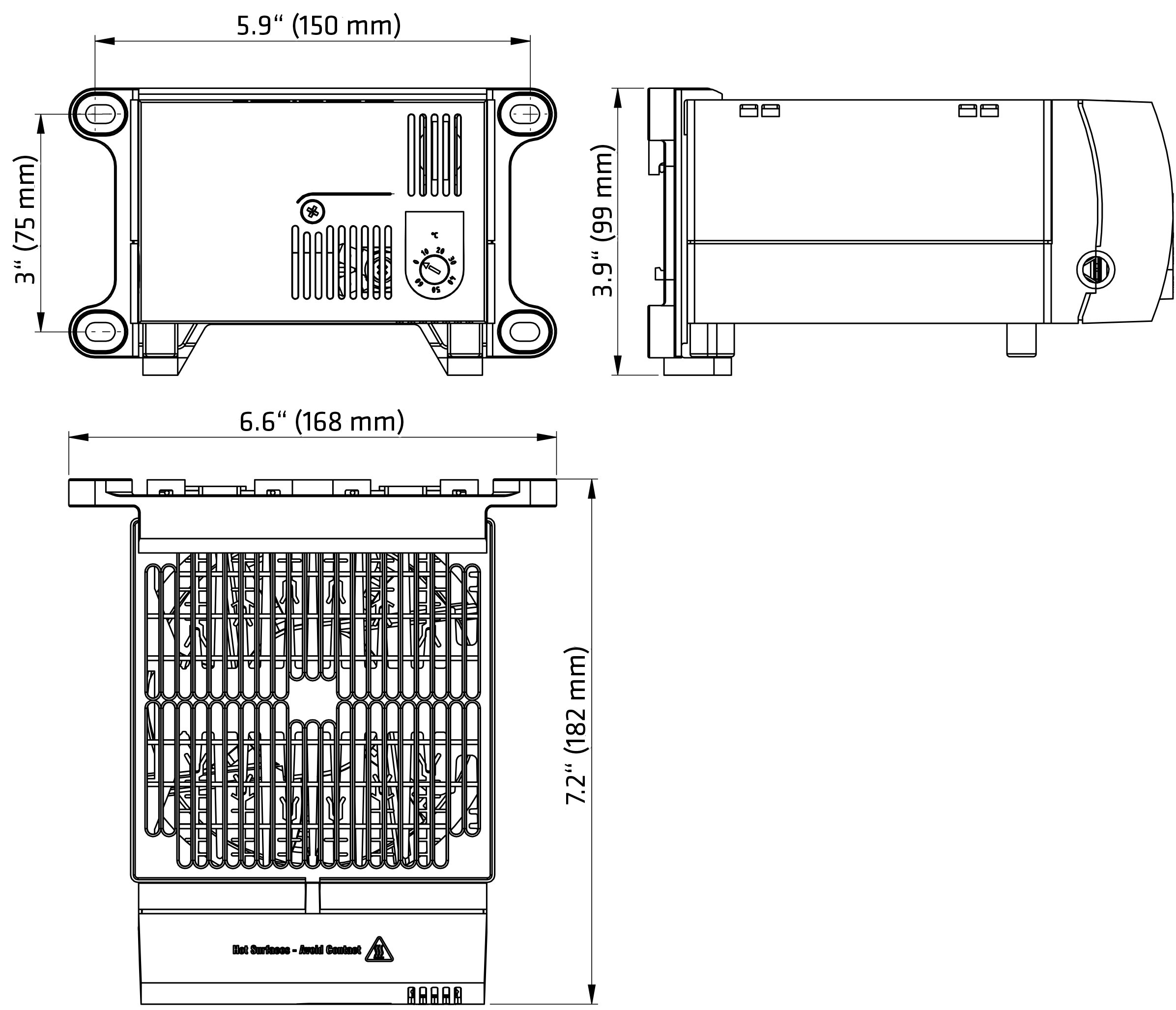

Height	99 mm
Width	168 mm
Depth	182 mm
Weight	1500 g
Note	Fan heater with thermostat;other heating capacities from 200 W on request;tolerance ±4 K;switching temperature differential 7 K (±4 K tolerance).

Product variants

Article number	Operating voltage	Operating voltage tolerance	Recommended backup fuse	Setting range	Interactions
13051.0-00	230 V	208 V - 253 V	6,3 A	0 °C - 60 °C
13059.9-00	120 V	108 V - 132 V	10 A	32 °F - 140 °F
