Enclosure heater with fan
CR 027
This heating with PTC element is used to prevent frost and condensation in the enclosure and casing. The built-in fan further intensifies the heating effect through convection. The integrated, adjustabl thermostat saves space in the application.
- Adjustable, integrated thermostat
- Plastic casing, safe to touch
- Optical indicator
- Temperature safety cut-out to prevent overheating
Overview technical data
| Device name | Enclosure heater with fan |
| Device type | Fan heater Integrated control Touchsafe |
| Series | CR 027 |
| Temperature monitoring | Overheating protection in the event of fan failure with automatic reset |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Operating display | Glow lamp |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC |
| Recommended backup fuse | 10 A |
| Frequency | 50;60 Hz |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection terminal |
| Torque | 0.8 Nmmax. |
| Connection | 2-pole clamp 2.5 mm² |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

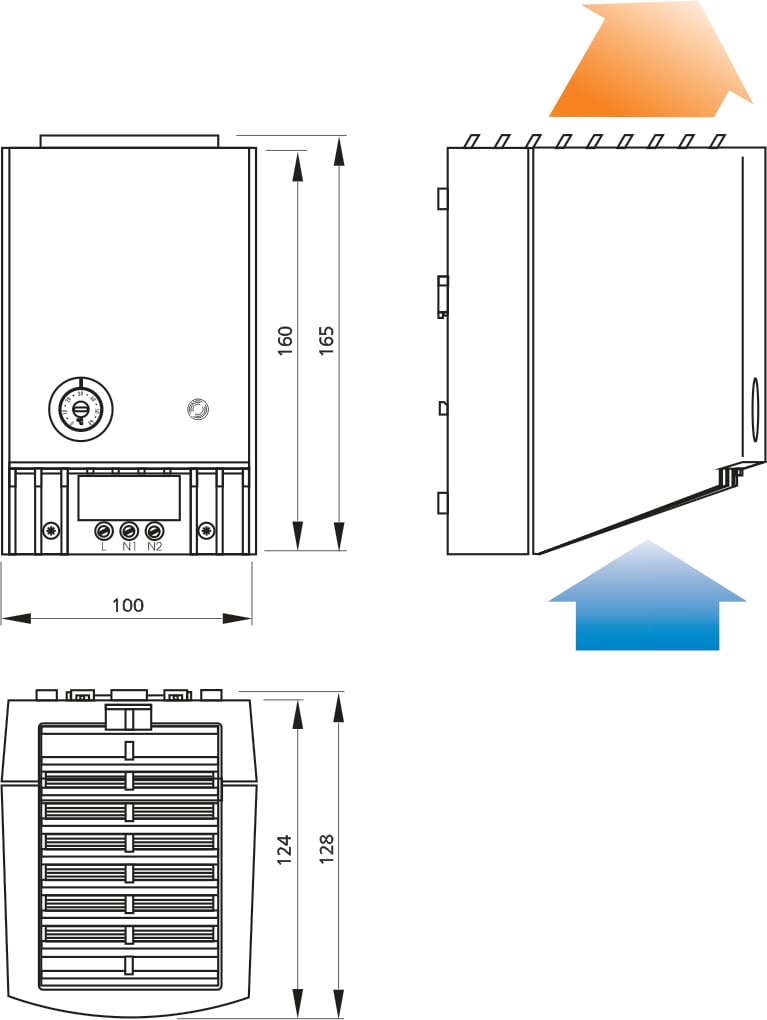

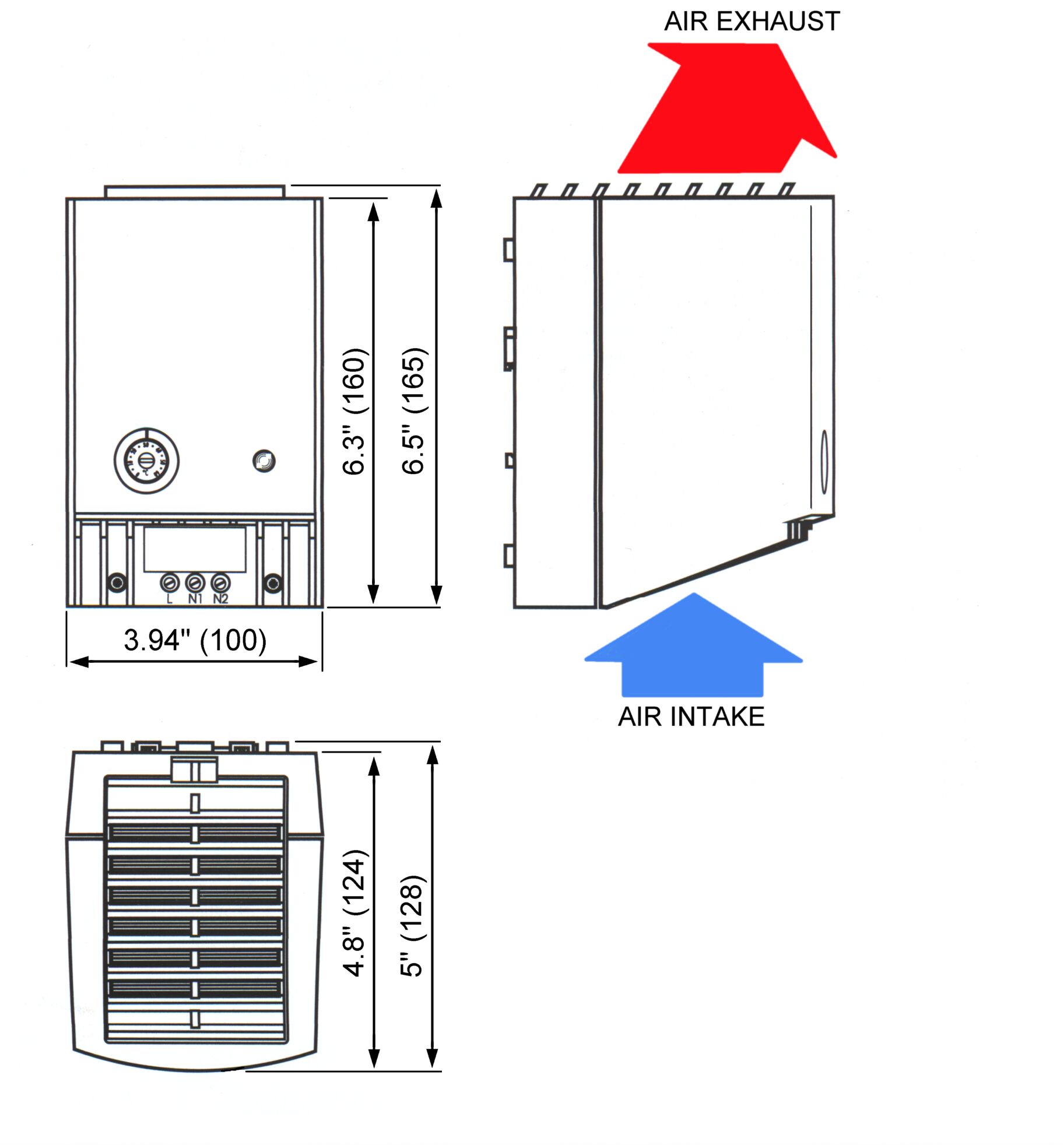

| Height | 165 mm |
| Width | 128 mm |
| Depth | 100 mm |

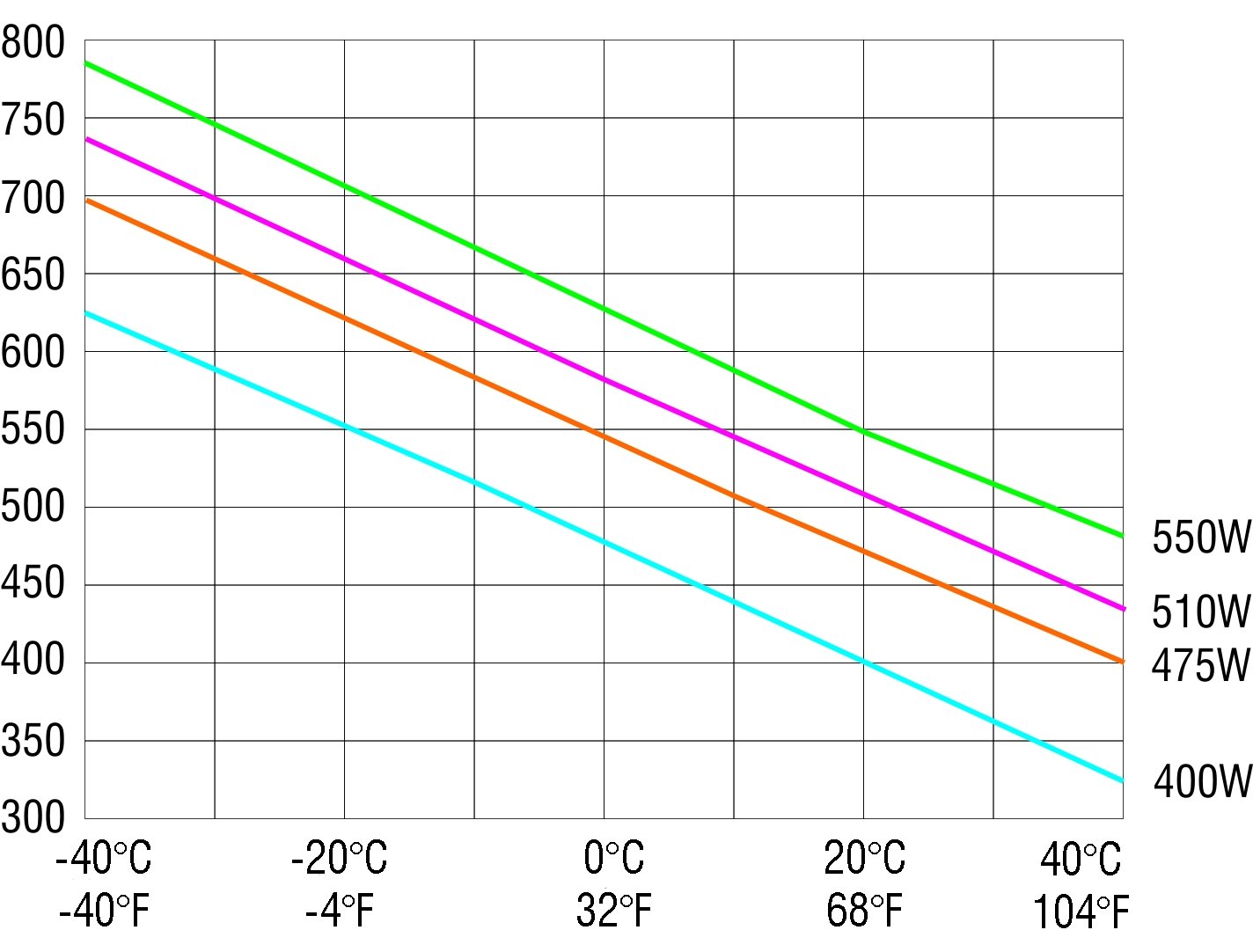

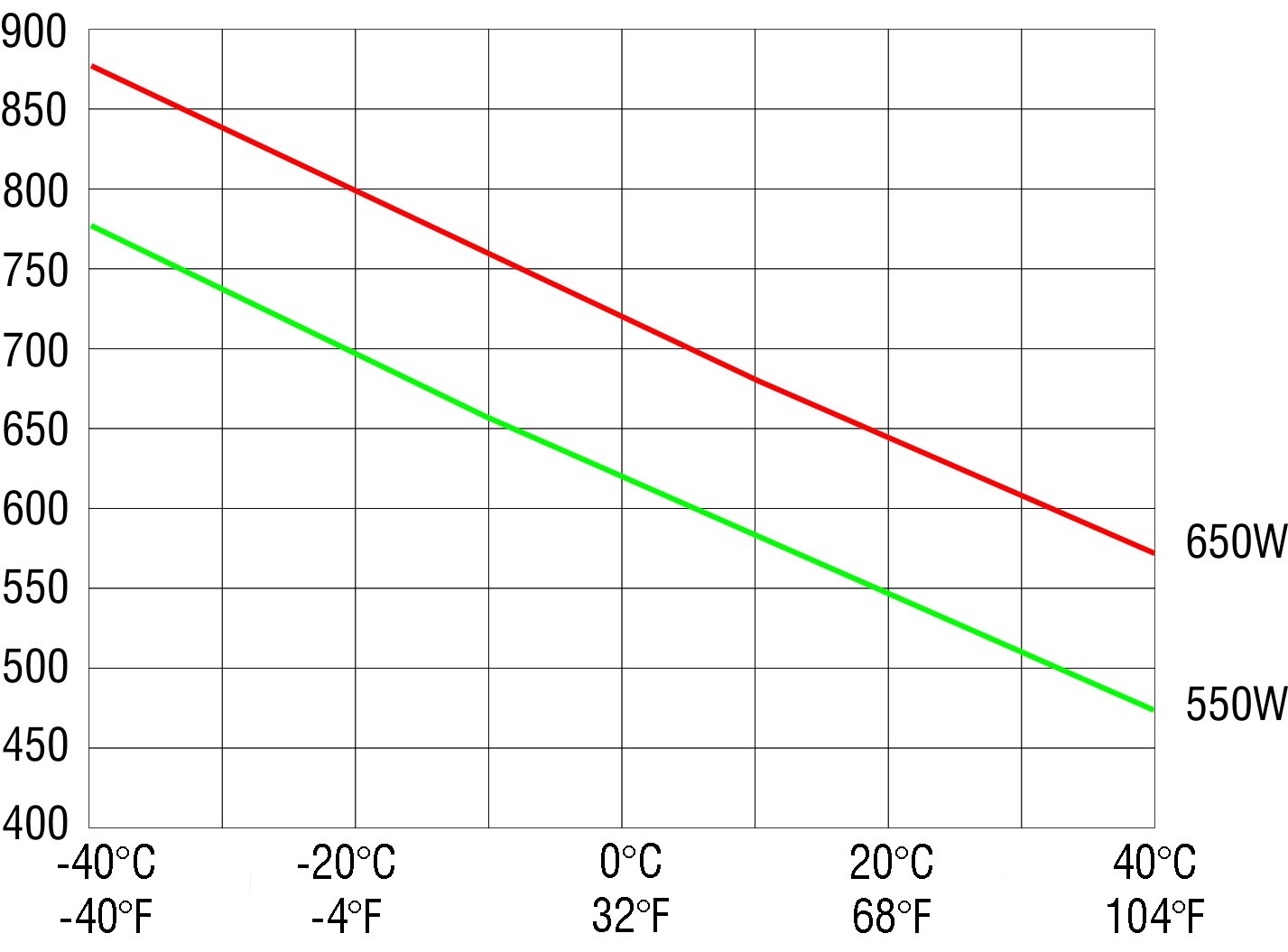

| Note | Heating capacity at +20°C (+68°F) ambient temperature setting range thermostat of switching temperature differential 7K (+4K tolerance). |
