This heating with PTC element is used to prevent frost and condensation in the enclosure and casing. The built-in fan further intensifies the heating effect through convection. The integrated, adjustable thermostat saves space in the application.
| Device type | Fan heater; Integrated control; Touchsafe |
| Temperature monitoring | Overheating protection in the event of fan failure with automatic reset |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Operating display | Glow lamp |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC |
| Frequency | 50;60 Hz |
| Setting range | 32 °F - 140 °F |
| Operating temperature | -49 °F - 158 °F |
| Operating humidity | ≤90 % rF |
| Storage humidity | ≤90 % rF |
| Storage temperature | -49 °F - 158 °F |
| Connection type | Connection terminal |
| Torque | 0.8 Nm max. |
| Connection | 2-pole clamp 2.5 mm² |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

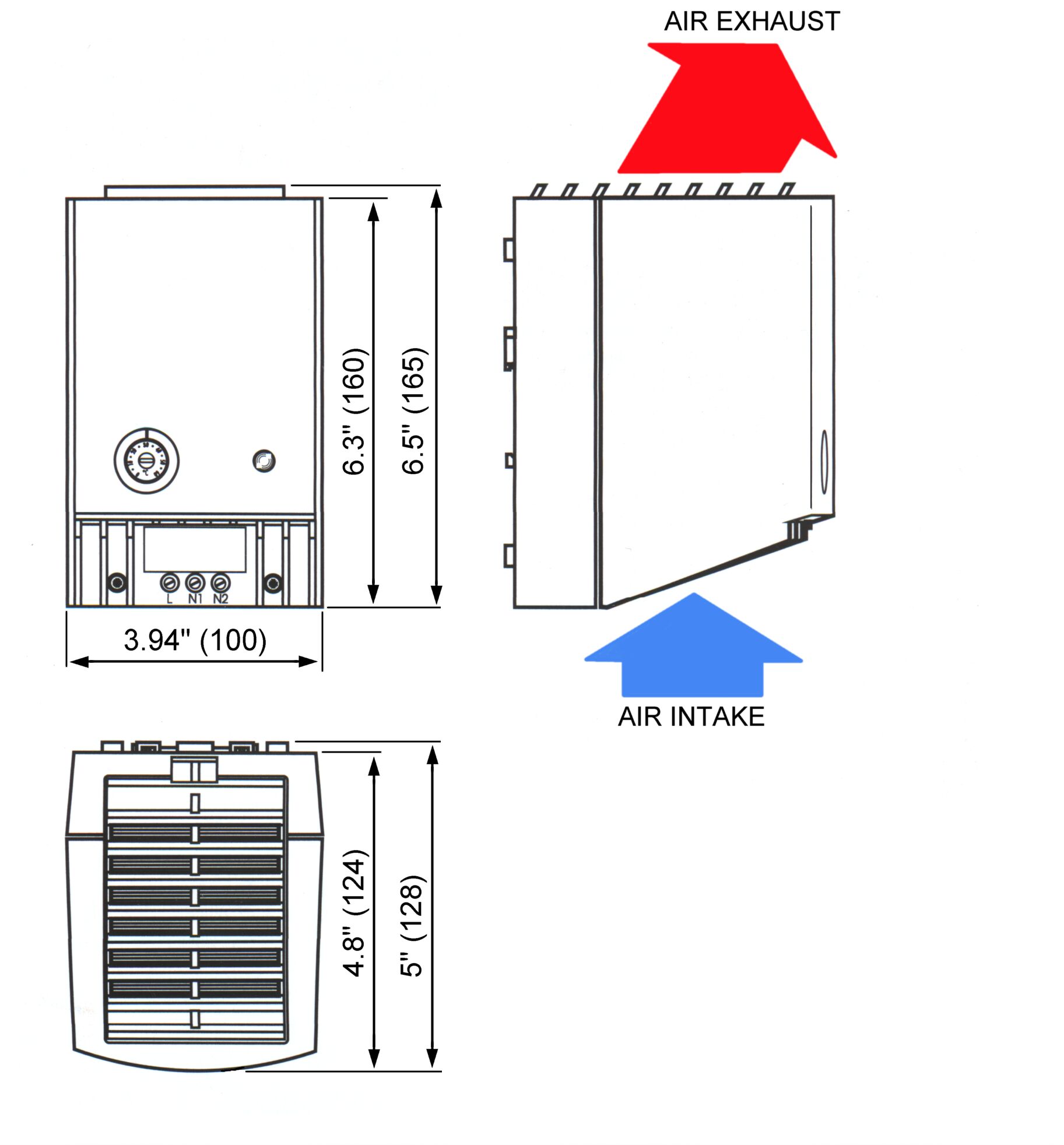

| Height | 6.5 in |
| Width | 5 in |
| Depth | 3.9 in |
| Note | Heating capacity at +20 °C (+68 °F) ambient temperature; setting range thermostat of switching temperature differential 7K (+4K tolerance). |
| Article number | Operating voltage | Inrush current | Heating capacity | Axial fan | Weight | Interactions |
|---|---|---|---|---|---|---|
| 02700.0-00 | 220 V - 240 V | 11 A | 475 W - 550 W | 20.6 cfm | 31.7 oz | |
| 02700.9-00 | 100 V - 120 V | 14 A | 400 W - 550 W | 20.6 cfm | 31.7 oz | |
| 02701.0-00 | 220 V - 240 V | 13 A | 550 W | 26.5 cfm | 38.8 oz | |
| 02701.9-00 | 100 V - 120 V | 15 A | 510 W - 650 W | 26.5 cfm | 38.8 oz |
