Enclosure lamp with energy-saving bulb

SL 025

Slimline switch cabinet lighting with on/off switch and energy-saving lamp as light source. It emits a luminous flux of 900 Lm for the safe illumination of enclosures and casings. The electronic ballast and optional socket are integrated into the flat casing of the switch cabinet lamp.

On/off switch with integrated electronic ballast
Screw fixing, optionally also magnet fixing

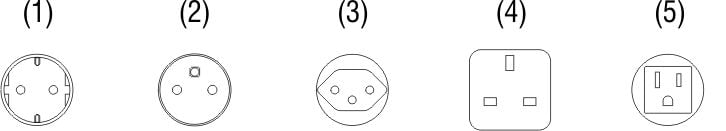

Optionally with or without integrated socket, country versions: DE, FR, CH, UK, USA
DC versions available

Overview technical data

Device type	Enclosure lamps
Switch	On/off switch
Illuminant	Energy-saving lamp
Protection type	IP20
Casing	Plastic to UL94 V-0, light grey
AC/DC	AC
Operating voltage	230 V
Operating voltage tolerance	207 V - 253 V
Frequency	50;60 Hz
Power consumption	11 W
Luminous flux	510 Lm
Service life	>10000 h
Operating temperature	-20 °C - 50 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C

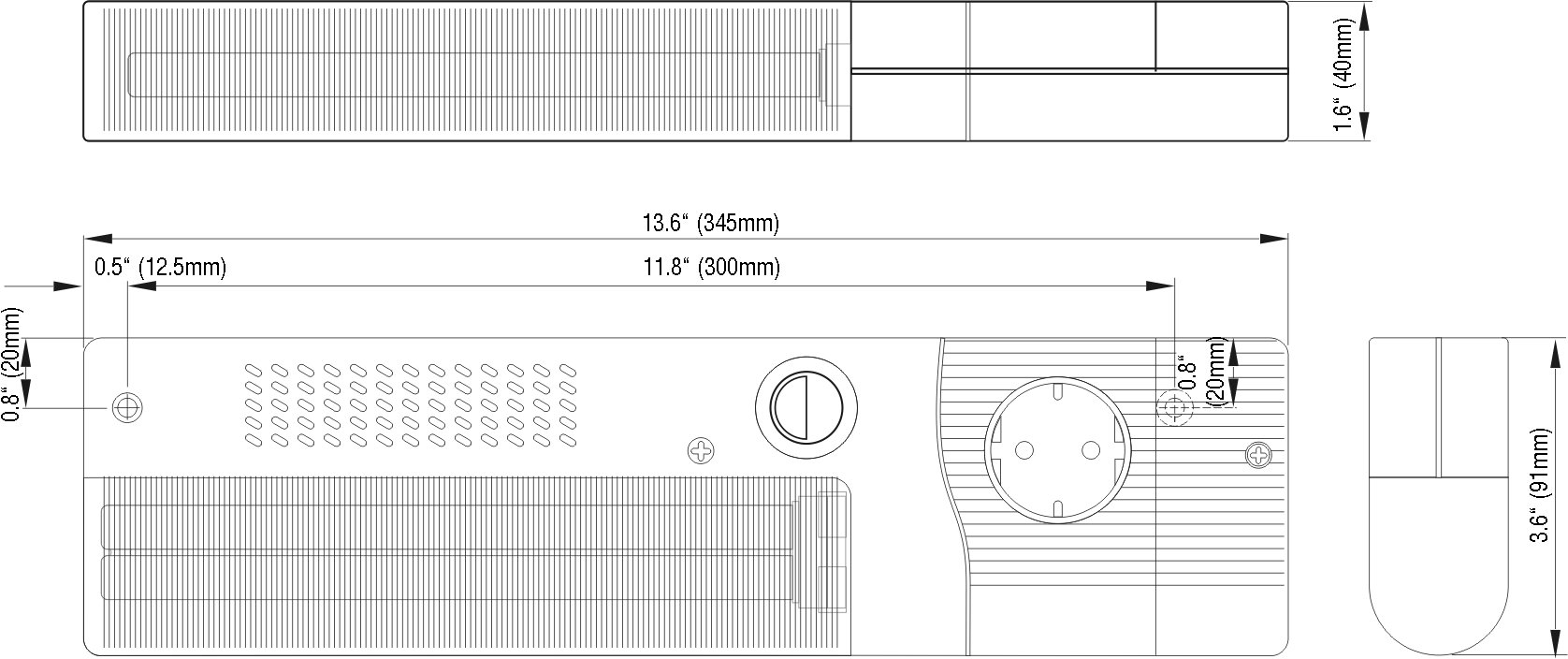

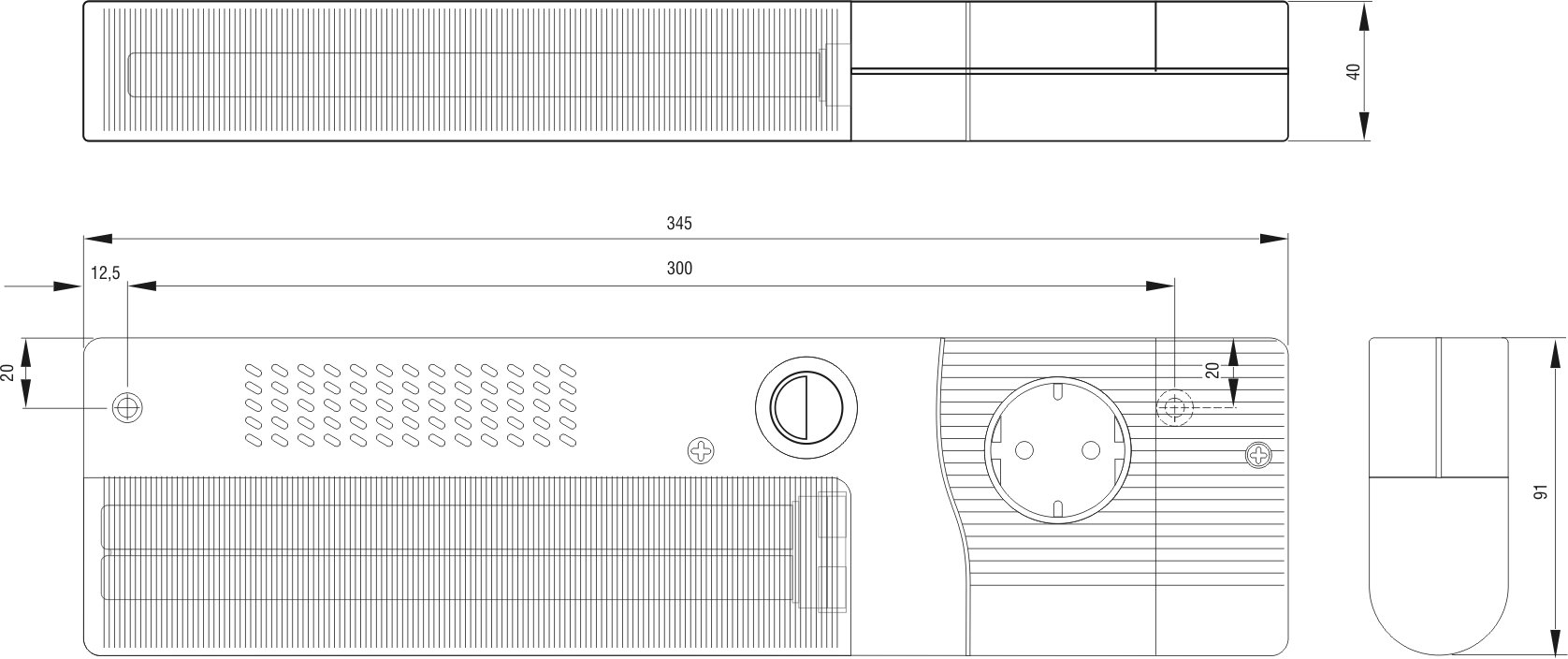

Height	91 mm
Width	40 mm
Depth	345 mm
Note	The SL 025 slimline lamp is also available with 19" front mounting.
Note	The SL 025 slimline lamp is also available with 19" front mounting.

Product variants

Article number	Socket	Protection class	Operating socket	Nominal current socket	Torque	Connection	Mounting	Weight	Material hood	Filter material	Filter mat	Axial fan	Cooling airflow rate outlet filter	Cooling airflow rate blowing	Average emission sound pressure level	Mounting frame	Installation depth	Mounting cut-out	Item number accessories 1	Item number accessories 2	Item number accessories 3	Accessory 1	Accessory 2	Accessory 3	Protection type UL
02520.1-01	DE/RU	I	250 V	16 A	0,8 Nmmax.	Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.	Magnet	500 g	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G3	Aluminium fan body, rotor metal	187 m³/h	204 m³/h	58 dB(A)	With 4 built-in rotary latches for locking	117 mm	176 x 176 mm	08635.0-00	11872.0-00	08672.0-00	Replacement filter mat FM 086	FPI 118 exit filter with air-flap outlet technology	Water jet protection bonnet FFH 086	NEMA Type 12
02527.0-00		II			0,8 Nmmax.	Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.	Screw	400 g
02520.0-00	DE/RU	I	250 V	16 A	0,8 Nmmax.	Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.	Screw	400 g	Plastic to UL94 V-0, light grey	Plastic fibre with progressive structure	G3	Aluminium fan body, rotor metal	139 m³/h	170 m³/h	55 dB(A)	With 4 built-in rotary latches for locking	117 mm	176 x 176 mm	08635.0-00	11872.0-00	08672.0-00	Replacement filter mat FM 086	FPI 118 exit filter with air-flap outlet technology	Water jet protection bonnet FFH 086	NEMA Type 12
02521.1-04	F/PL/CZ/SK	I	250 V	16 A	0,8 Nmmax.	Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.	Magnet	500 g
02523.1-05	UK/IRL	I	250 V	13 A			Magnet	300 g
02527.1-14		II			0,8 Nmmax.	Clamp 2.5 mm² with strain relief, torque 0.8 Nm max.	Magnet	500 g
