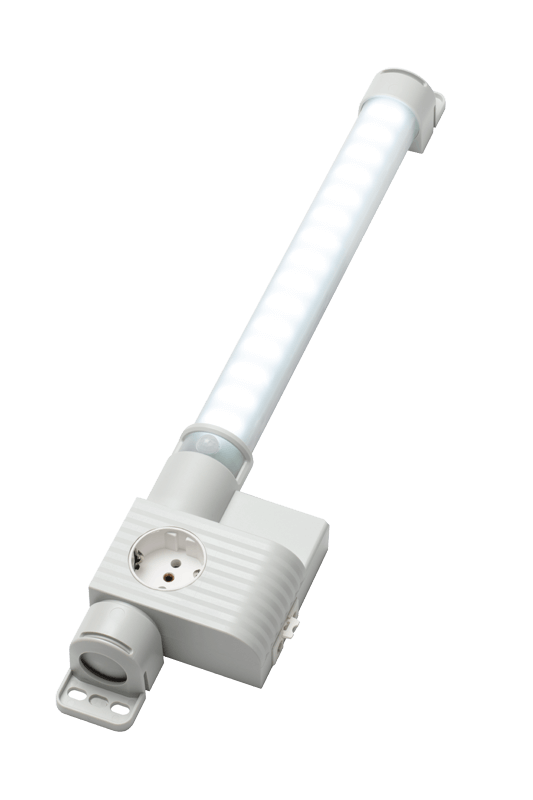

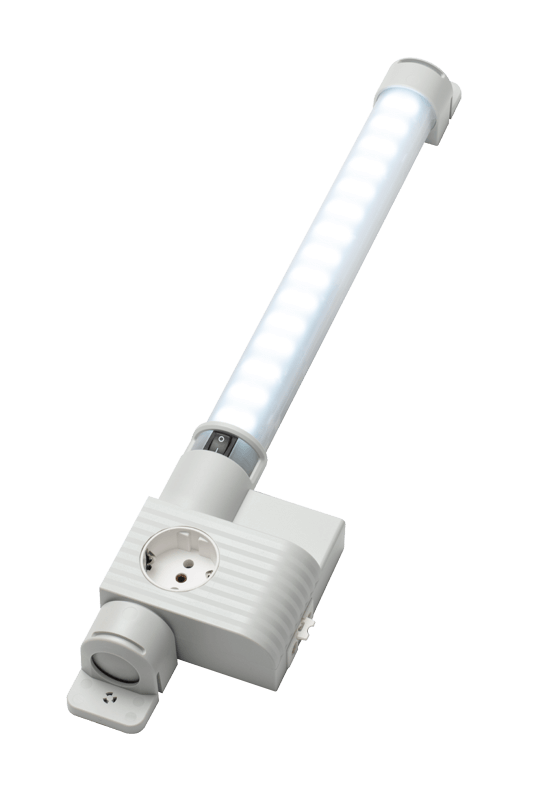

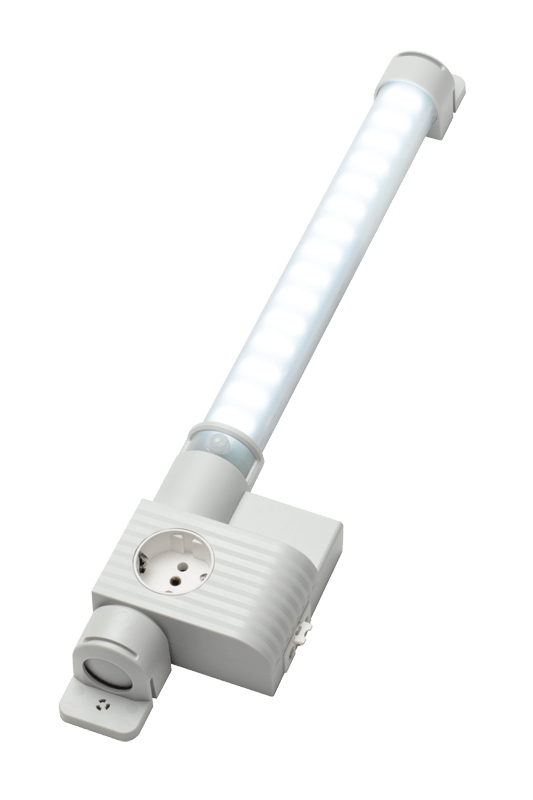

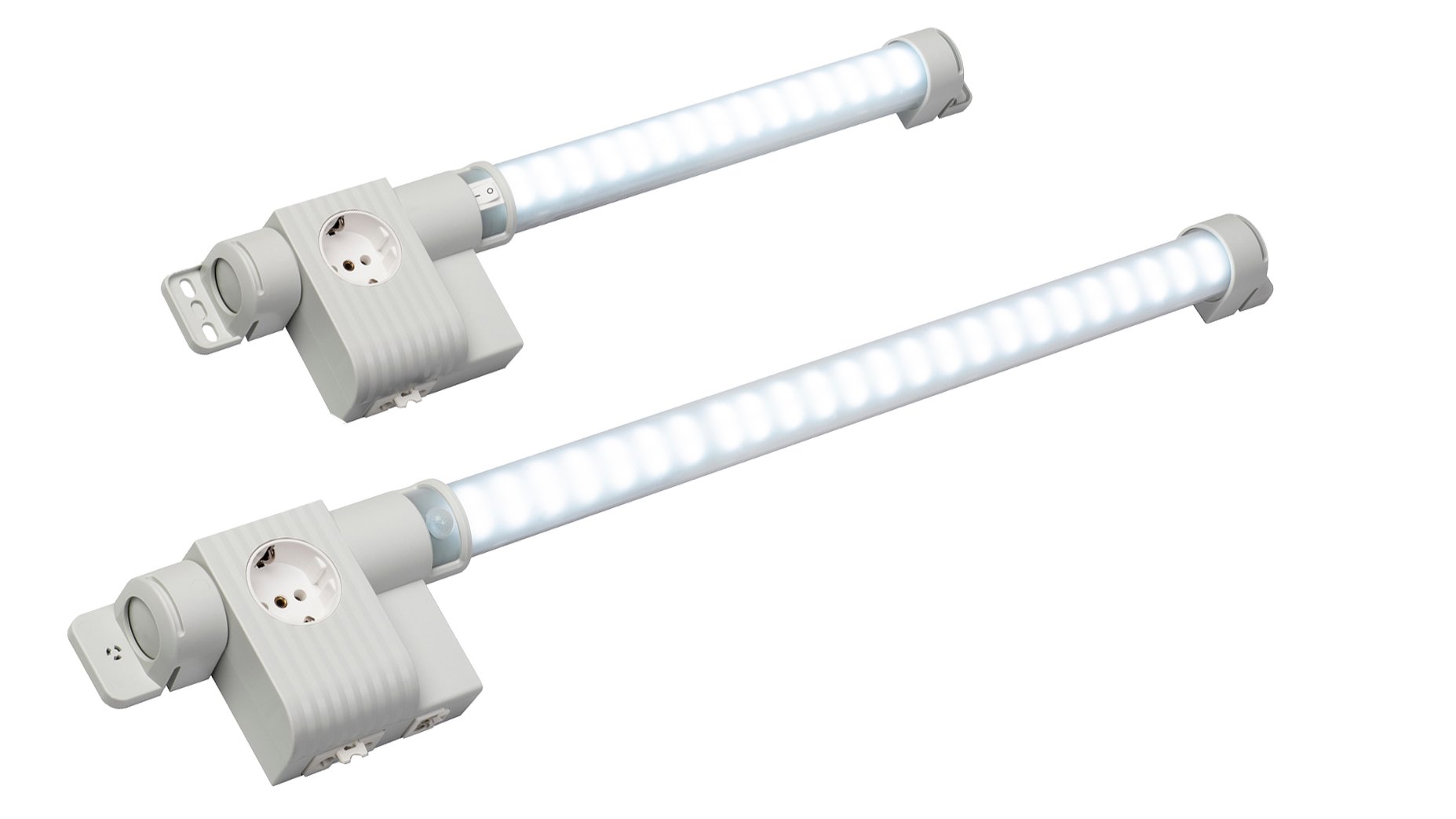

LED enclosure lamp
LED 121
The optimum lamp for enclosures: the compact and powerful Varioline LED enclosure lamp. With up to 1700 Lm luminous flux for good visibility and work safety in large enclosures. The glare-free, 360° rotatable light body is equipped with mid-power LEDs. Long, maintenance-free service life of 60,000 hours.
- Switching options: PIR motion detector, on/off switch, without switch (prepared for external switch)
- Integrated socket for: DE, FR, CH, UK, USA, IT, AUS
- Magnet or screw fixing
- Integrated power unit, daisy chain
- Available in two lengths: 500 and 700 mm
- Emitted luminous color 6,500 K (daylight); angle of radiation 120°
Overview technical data
| Device name | LED enclosure lamp |
| Device type | LED enclosure lamps |
| Series | LED 121 |
| Switch | Motion detector |
| Illuminant | LED |
| Socket | DE/RU |
| Protection class | I |
| Protection type | IP20 |
| Casing | Plastic, translucent |
| AC/DC | AC |
| Operating voltage | 220 V - 240 V |
| Operating voltage tolerance | 200 V - 265 V |
| Frequency | 50;60 Hz |
| Power consumption | 11 W |
| Luminous colour | 6500 K |
| Luminous flux | 1080 Lm |
| Nominal current socket | 16 A |
| Service life | >60000 h |
| Operating temperature | -40 °C - 40 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 85 °C |
| Connection type | Connector plug |
| Connection | 3-pole connector with snap lock |
| Height | 44 mm |
| Width | 100 mm |
| Depth | 500 mm |
| Weight | 300 g |
| Item number accessories 1 | 244359 |
| Item number accessories 2 | 244423 |
| Item number accessories 3 | 264093 |
| Item number accessories 4 | 264091 |
| Accessory 1 | Extension cable 2 x AWG 16 with female and male connectors - through-wiring, 1 m |
| Accessory 2 | Connection cable 3 x AWG 16 with female connector, 4 m |
| Accessory 3 | Separate female connector for cable connection |
| Accessory 4 | Separate female connector for cable connection + daisy chain |
