Enclosure heater
HGK 047
This compact enclosure heater with PTC heating element prevents condensation from forming in enclosures. It is a convection heater for small enclosures and casings. The heater body is designed in anodised aluminum profile.
- Wide voltage range for electrical connection
- PTC heating element with dynamic response behavior
- This enclosure heater is designed for continuous operation
- Quick installation with clip fixing for 35 mm DIN rail
Overview technical data
| Device name | Enclosure heater |
| Device type | Convection heaters |
| Series | HGK 047 |
| Protection class | I |
| Protection type | IP44 |
| Heating element | PTC resistor (PTC) |
| Heater element | Aluminium profile, anodised |
| AC/DC | AC DC |
| Operating voltage tolerance | 110 V - 265 V |
| Frequency | 50;60 Hz |
| Operating temperature | -45 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Connection type | Connection cable |
| Mounting | Clip for 35 mm DIN rail |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

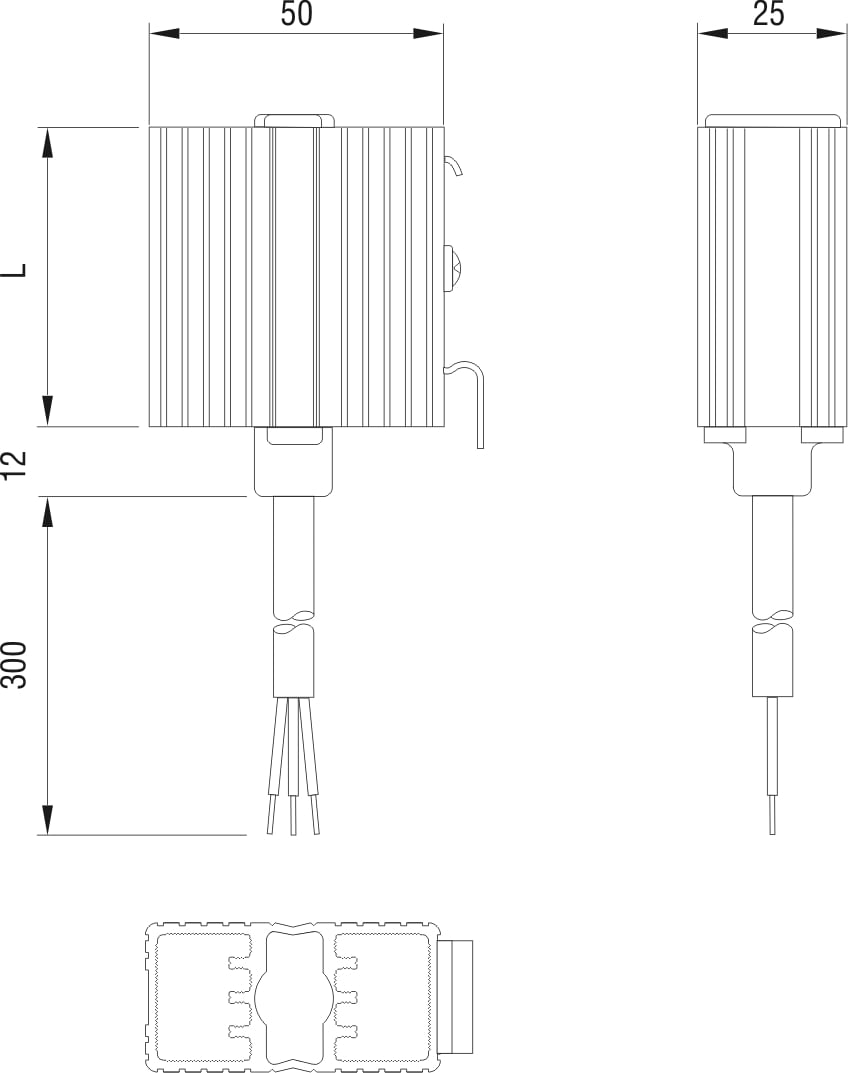

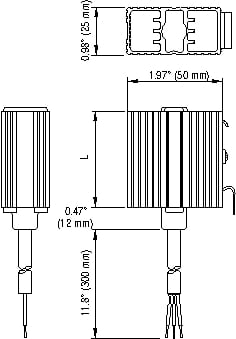

| Height | 25 mm |
| Width | 50 mm |
| Item number accessories 1 | 09024.0-00 |
| Accessory 1 | Screw fixing |
| Note | Other voltages on request Heating capacity at +20°C (+68°F) ambient temperature (min. 110V, max. 265V) when operating under AC/DC 140V, the heating capacity is reduced by approx. 10%. |
