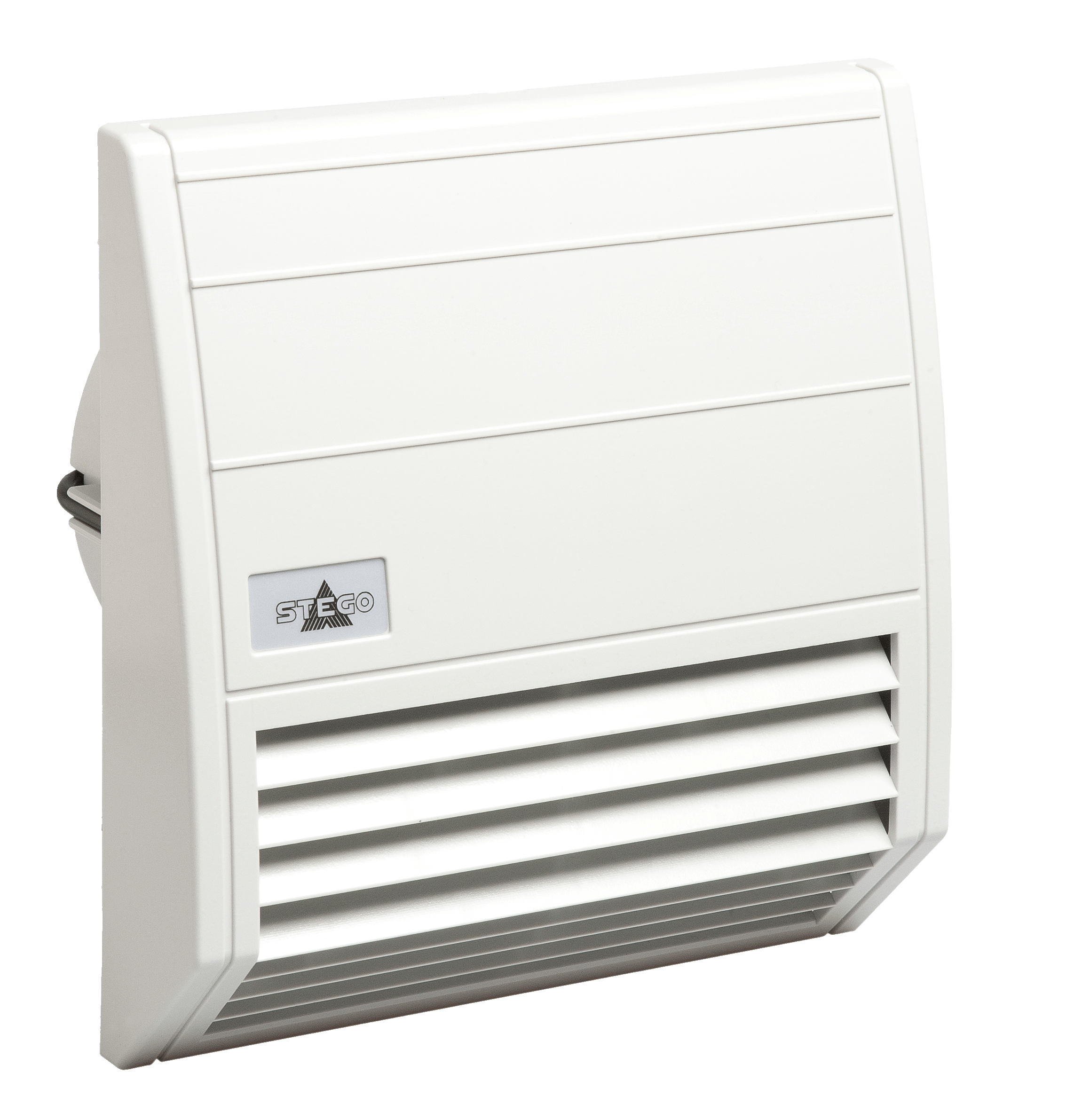

Filter fan - size 2
FF 018
Size 2 filter fan for optimum ventilation of enclosures and casings with electrical/electronic installations. The supply of filtered, cold ambient air and the removal of heated internal air reduces the internal temperature. The resulting air flow prevents the formation of hot pockets and protects the components from overheating. This filter fan series is intended for indoor use. The plastic used for the hood material has a high UV light resistance. The plastic used for the hood material has a high UV light resistance.
- Easy to maintain
- high air through-flow
- Functional design
- Time-saving installation
- UV light resistant
Overview technical data
| Device type | Filter fan |
| Protection class | I |
| Protection type | IP54 |
| Material hood | Plastic to UL94 V-0, light grey |
| Filter material | Plastic fibre with progressive structure |
| Filter mat | G4 |
| Casing | UL94 V-0 plastic, light grey |
| AC/DC | AC |
| Power consumption | 15 W |
| Axial fan | Fan body aluminium, rotor plastic |
| Average emission sound pressure level | 40 dB(A) |
| Service life | >50000 h |
| Operating temperature | -10 °C - 70 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Connection | 2 stranded wires, 100 mm long, with 2.5 mm² pressure clamps |

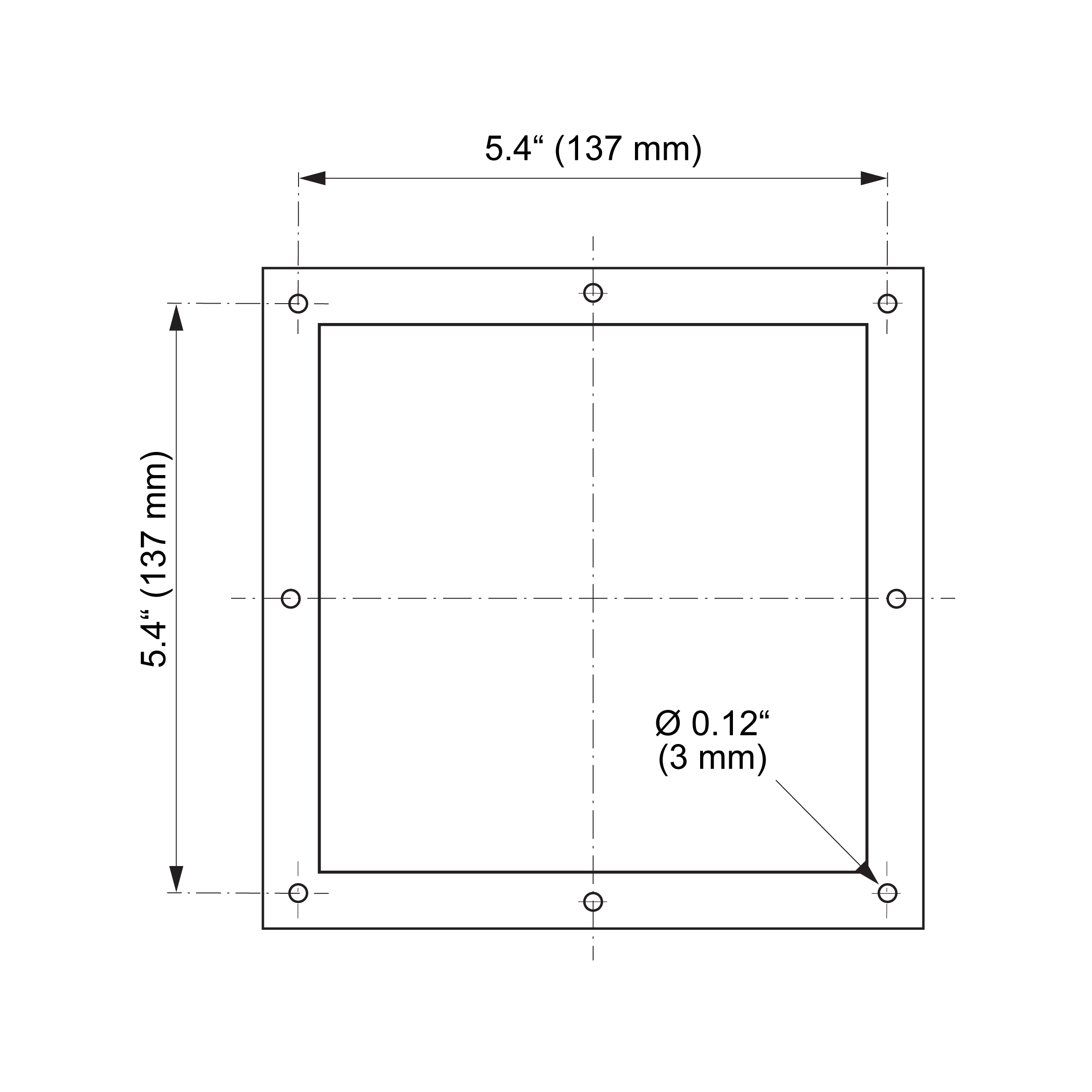

| Drill hole spacing | 137 mm |

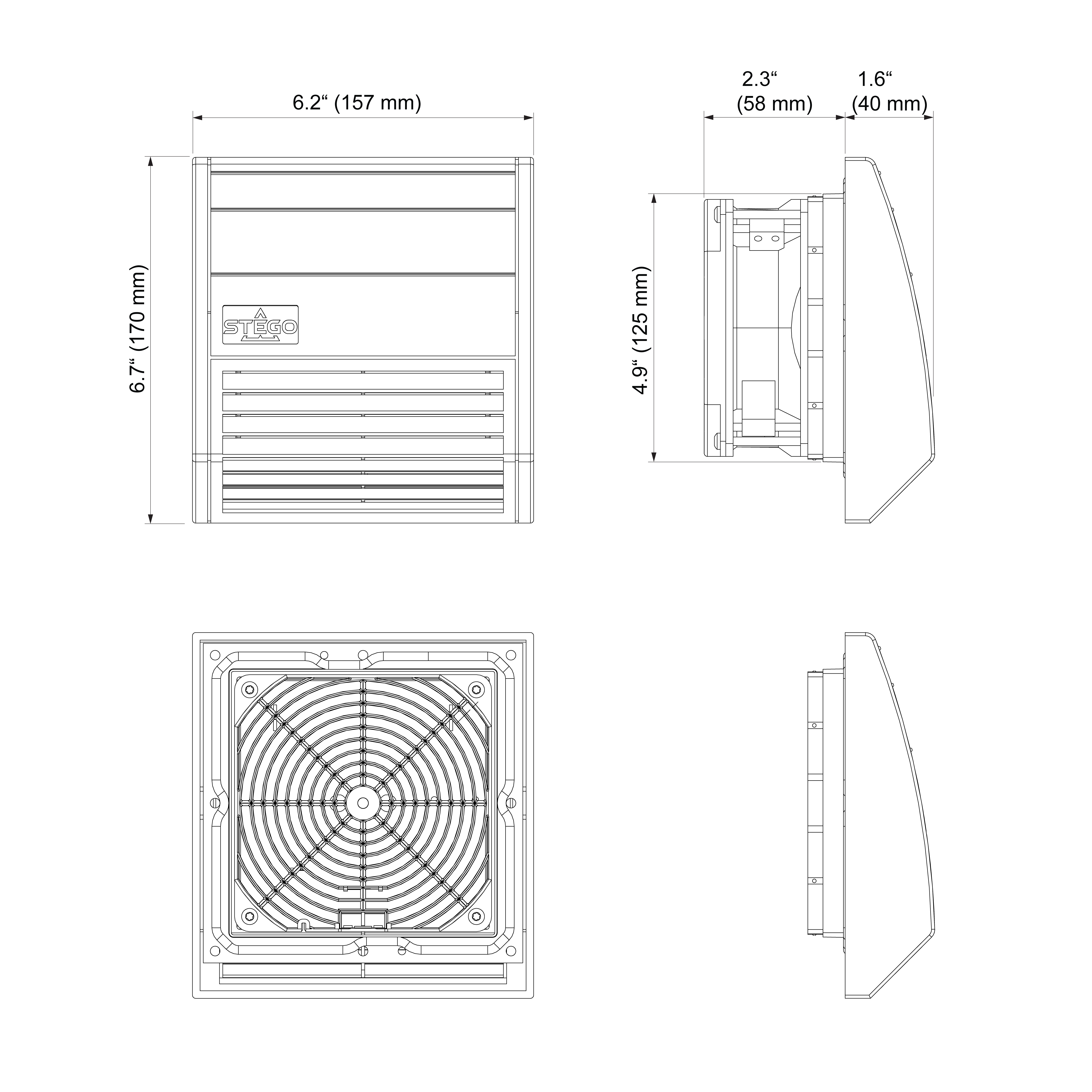

| Height | 170 mm |
| Width | 157 mm |
| Depth | 98 mm |
| Installation depth | 58 mm |
| Weight | 1000 g |
| Mounting cut-out | 125 x 125 mm |
| Item number accessories 1 | 08601.0-00 |
| Item number accessories 2 | 11801.0-00 |
| Accessory 1 | Replacement filter mat FM 086 (3 pcs.) |
| Accessory 2 | Exit filter EF 118 |
