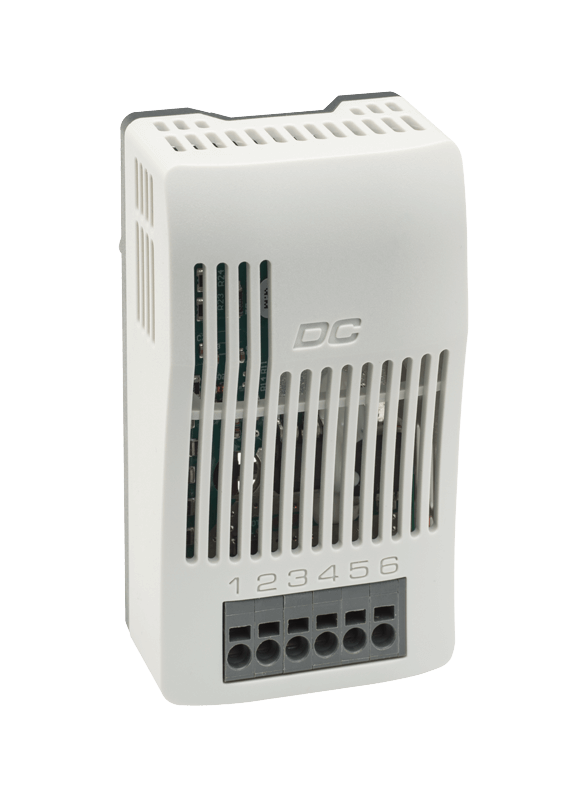

Switch module
DCM 010
Switch module for switching DC devices with high power in enclosure applications. Use as a thermostat or hygrostat: Control via potential-free, external contact.
- High DC switching capacity
- Large DC voltage range
- versatile
- Simple, fast connection
Overview technical data
| Device name | Switch module |
| Device type | Hygrostat DC applications |
| Series | DCM 010 |
| Setting range | adjustabl |
| Contact type | MOSFET |
| Protection type | IP20 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | DC |
| Operating voltage | 20 V - 56 V |
| Operating voltage tolerance | 18 V - 61 V |
| Inrush current maximum | 30 A |
| Inrush current duration | 10 s |
| Power consumption | 1 W |
| Reference voltage ohmic maximum | 20...56 VDC |
| Service life | >100000 cycles |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 80 °C |
| Connection | 6-pole clamp: stranded wire 1.5 mm² (AWG 16) max. 2.5 mm² (AWG 12) |
| Design | Normally open (NO) |
| Mounting | Clip for 35 mm DIN rail, EN 60715 |

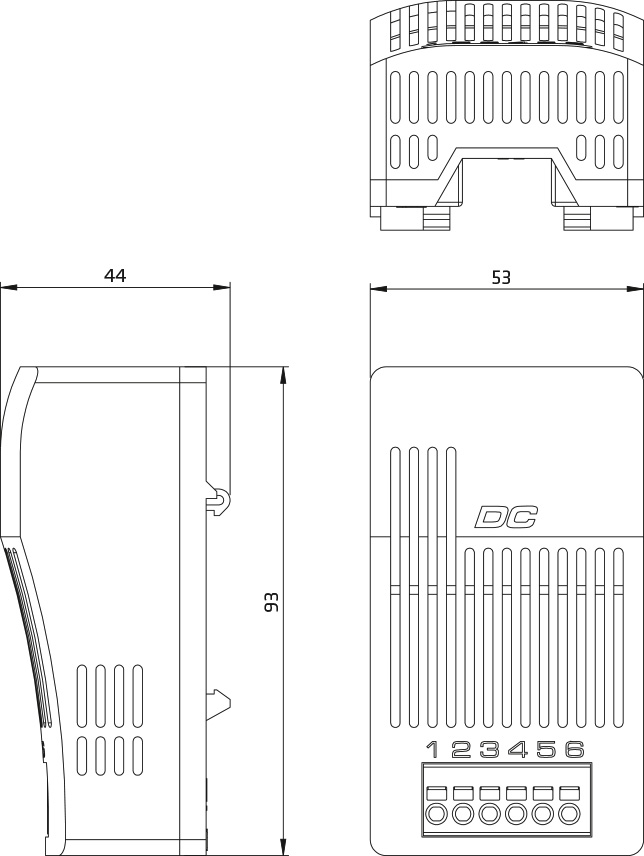

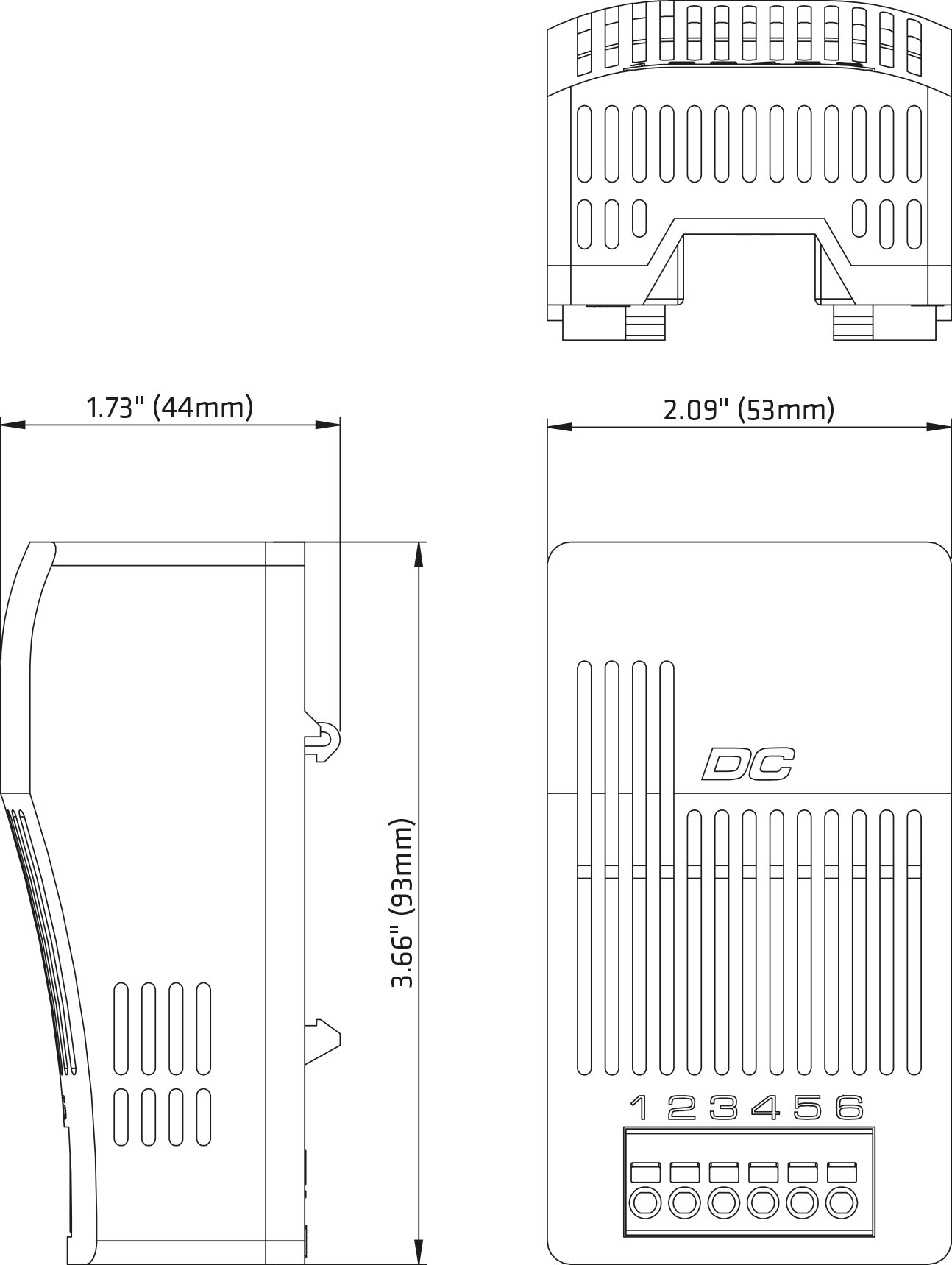

| Height | 93 mm |
| Width | 53 mm |
| Depth | 44 mm |
| Weight | 65 g |
| Note | Wire end ferrules must be used for connections with stranded wires. |
