Enclosure heater with fan
CS 032
The compact enclosure heater with fan and PTC heating element helps to prevent frost and condensation forming in casings and installation spaces. The plastic sheathing makes the heating safe to touch during application. Quick electrical connection via IEC power plug.
- Compact, slim construction with high heating capacity

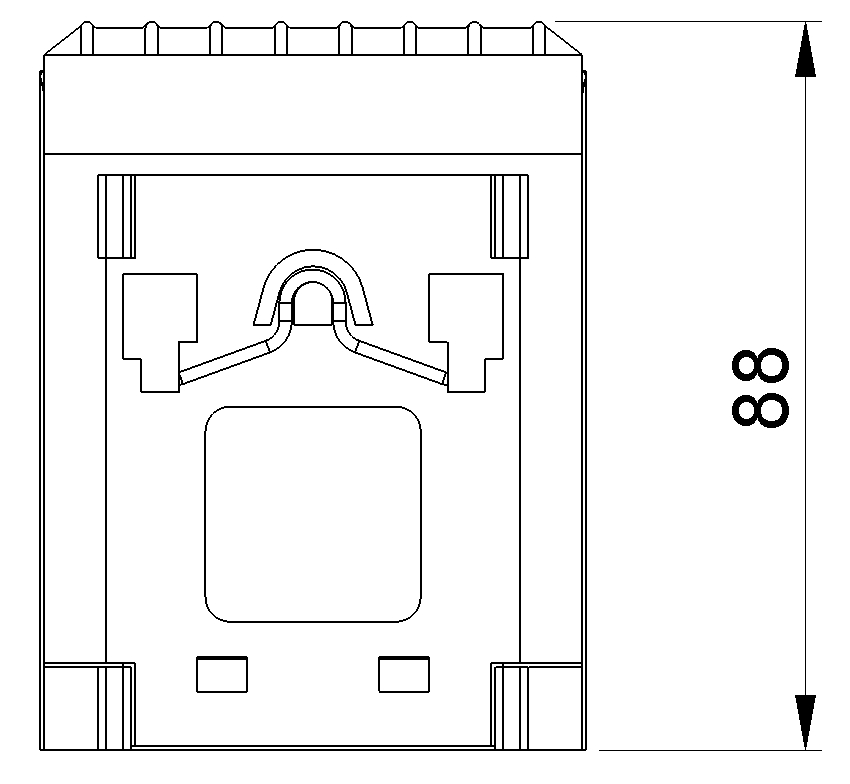

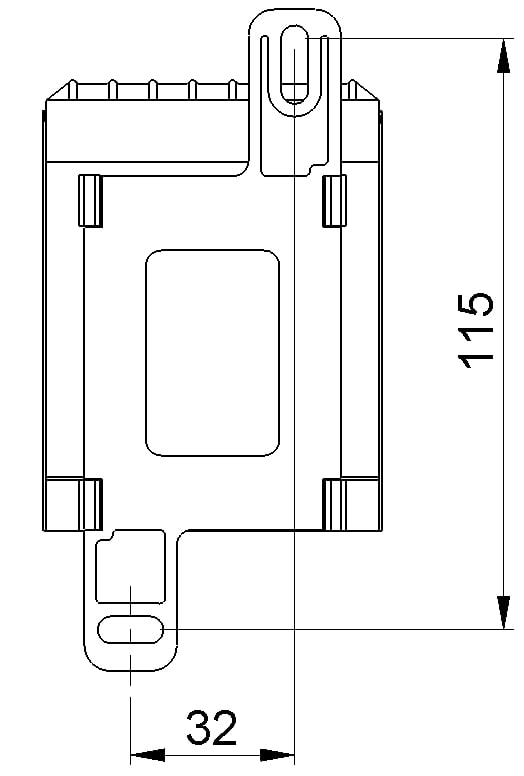

- Clip fixing for 35 mm DIN rail and screw fixing
- User safety: Touch-safe plastic casing
Overview technical data
| Device name | Enclosure heater with fan |
| Device type | Fan heater Touchsafe |
| Series | CS 032 |
| Temperature monitoring | Overheating protection in the event of fan failure with automatic reset |
| Protection class | II |
| Protection type | IP20 |
| Heating element | PTC resistor (PTC) |
| Casing | Plastic to UL94 V-0, black |
| AC/DC | AC |
| Frequency | 50;60 Hz |

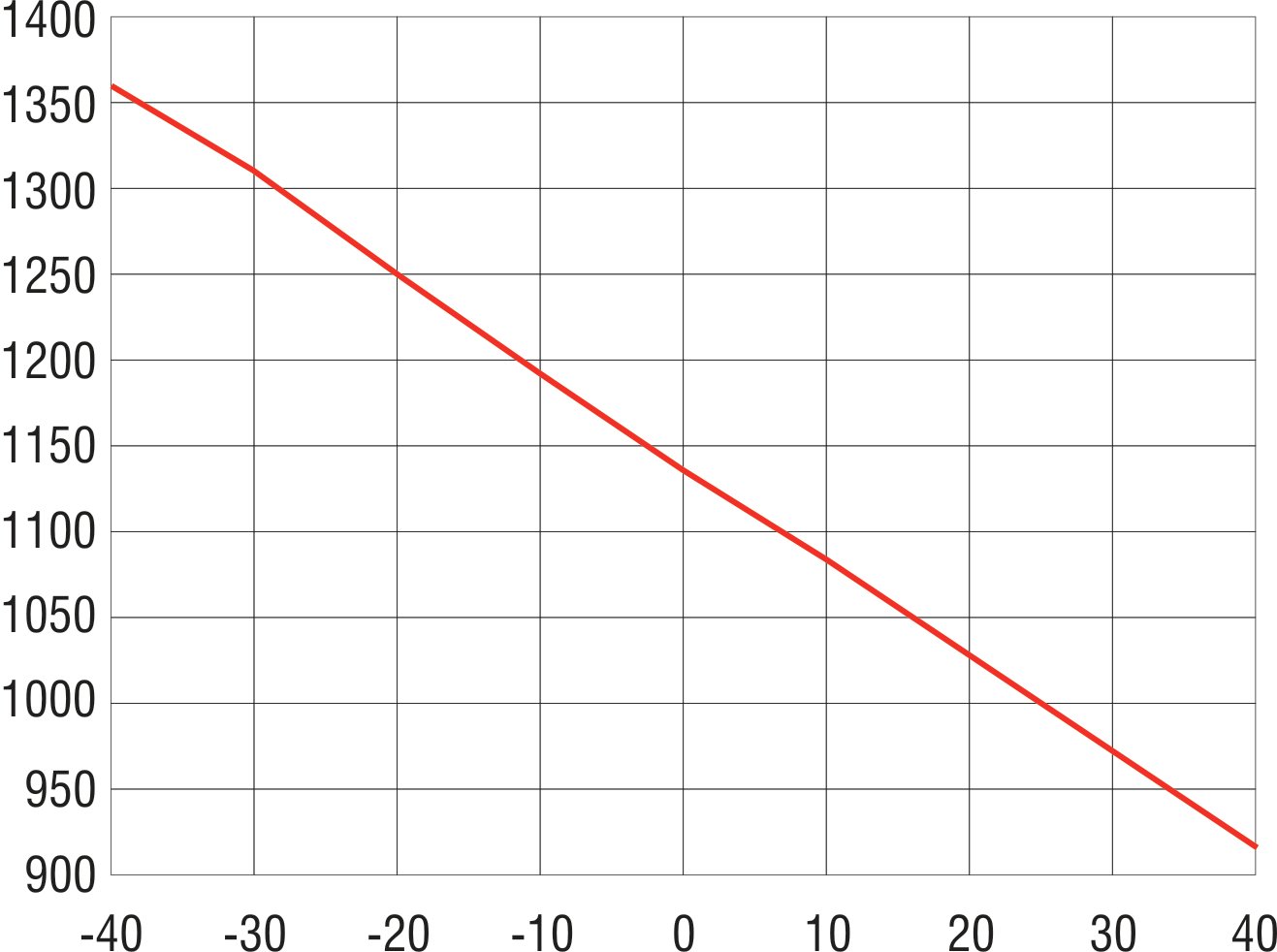

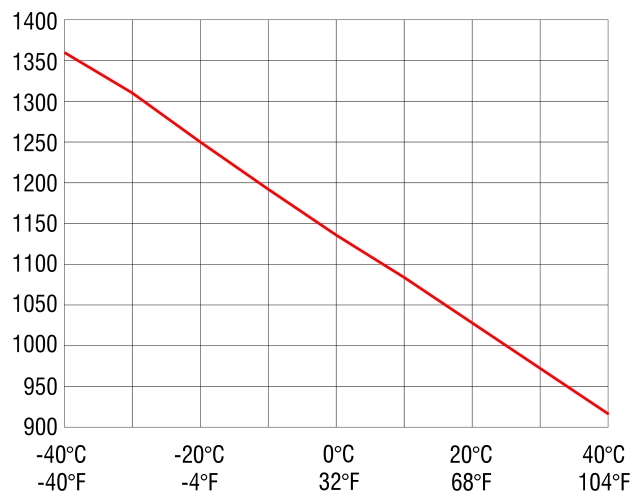

| Heating capacity minimum | 1000 W |
| Axial fan | 63 m³/h |
| Service life | >50000 h |
| Surface temperature | < + 80 °C |
| Operating temperature | -40 °C - 60 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -40 °C - 70 °C |
| Connection type | IEC power plug according to IEC320 C18 |
| Connection | IEC power plug according to IEC320 C18 |
| Installation position | Airflow direction "in" vertical / connection at the bottom |

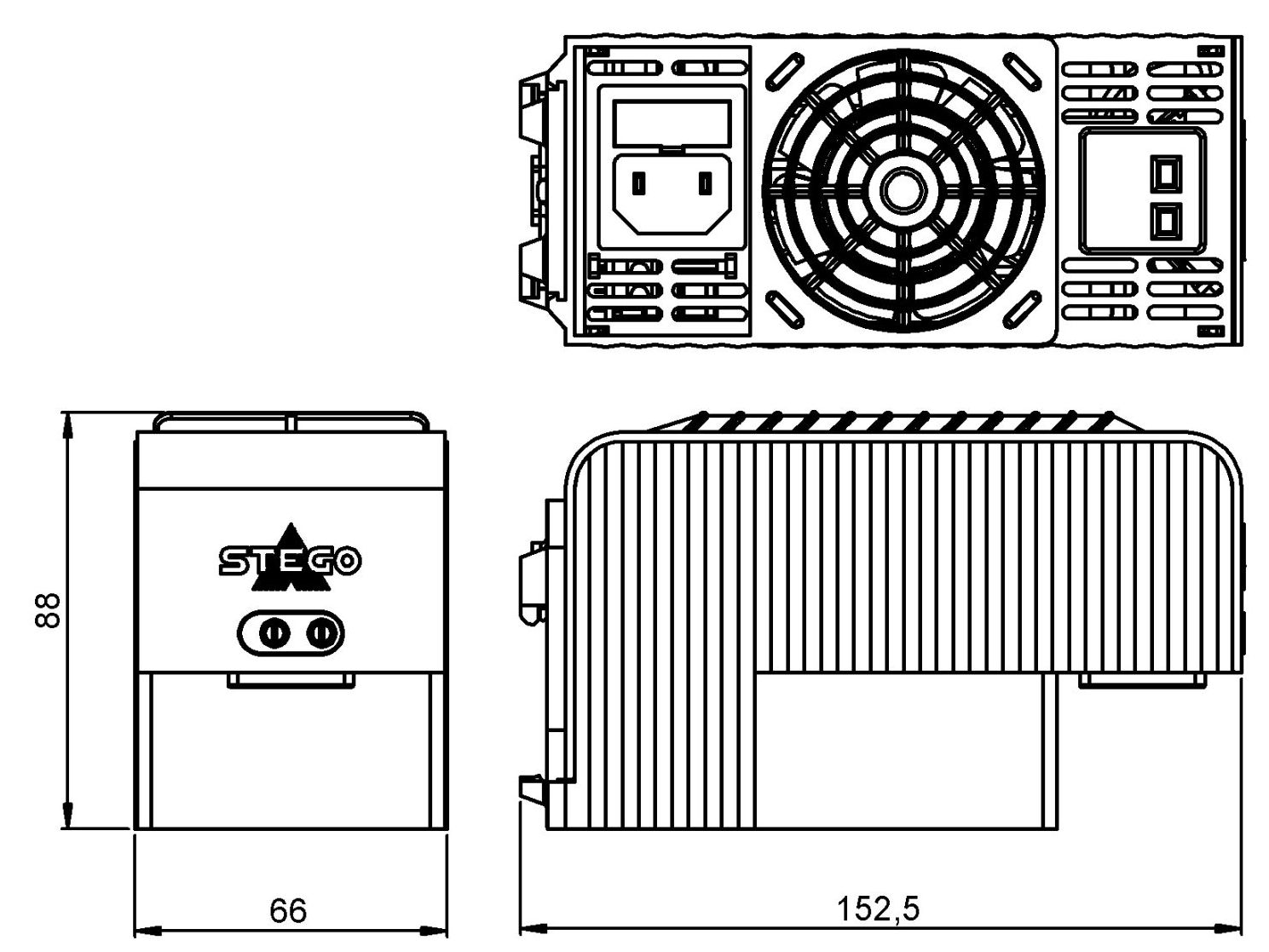

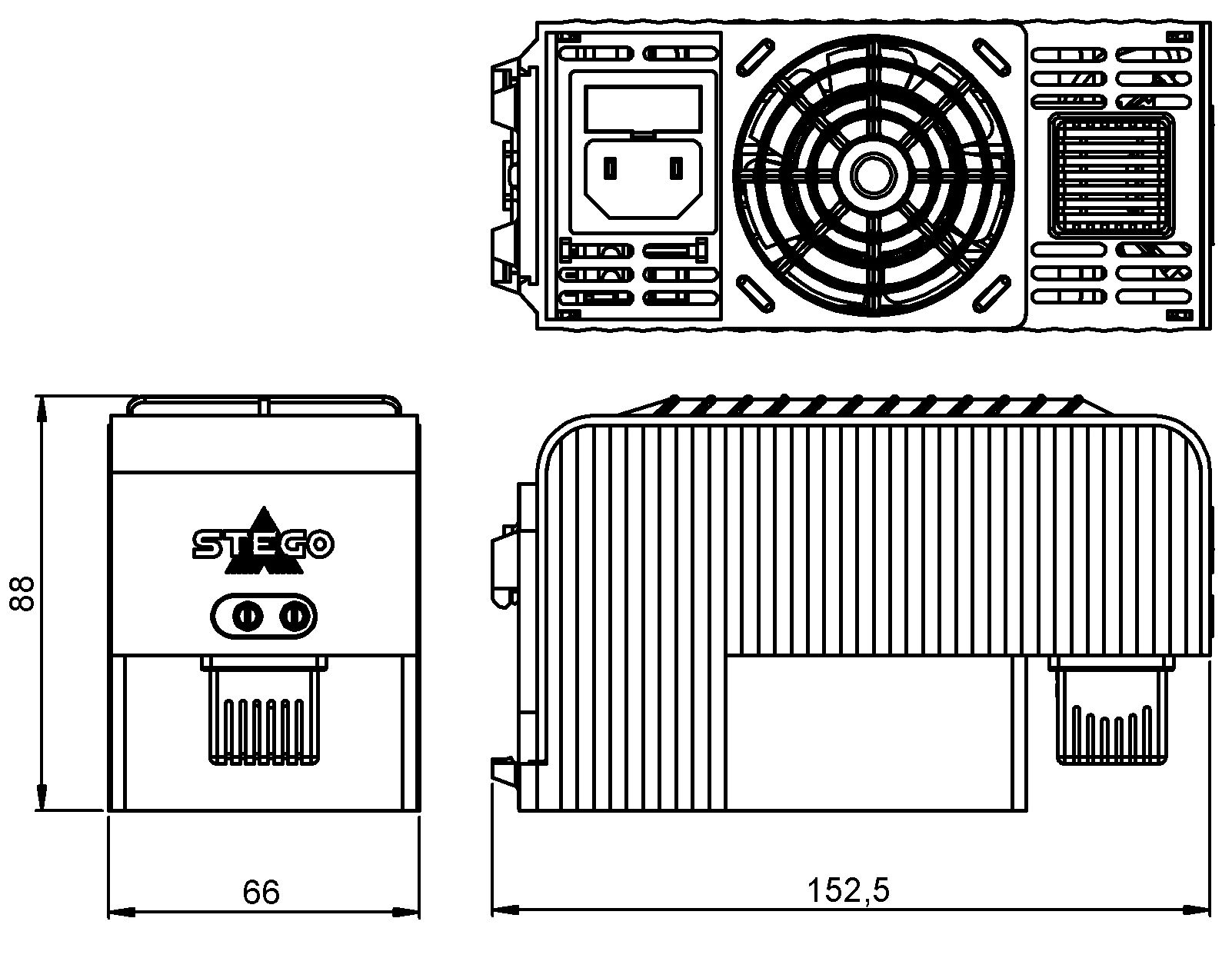

| Height | 88 mm |
| Width | 66 mm |
| Depth | 152.5 mm |
| Weight | 500 g |
| Item number accessories 1 | 244379 |
| Item number accessories 2 | 244380 |
| Item number accessories 3 | 237009 |

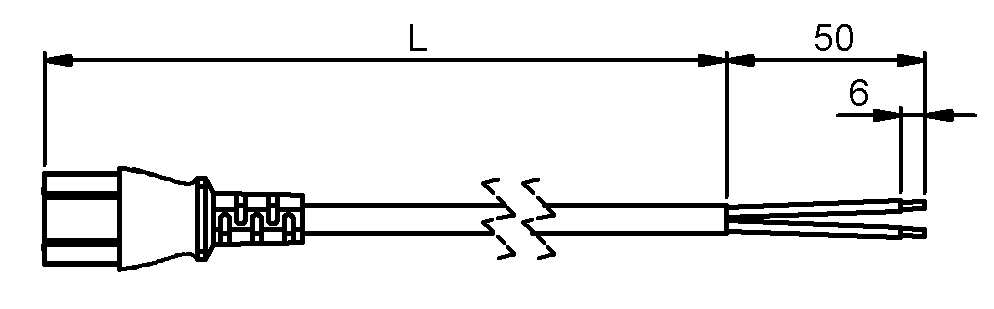

| Accessory 1 | Supply line with IEC power plug to IEC320 C17, 1 m |
| Accessory 2 | Supply line with IEC power plug to IEC320 C17, 2 m |
| Accessory 3 | Safety bracket |
| Note | Other switch-on and switch-off temperatures on request The scope of delivery does not include female connectors and supply lines for the electrical connection. Supply lines can be ordered separately, see accessories Heating capacity at +25°C (+77°F) ambient temperature switch-on temperature tolerance +5K. |
