Explosion-proof enclosure heater

CREX 020

Temperature class T5 (surface temperature max. 100 °C): Enclosure heater for explosion-proof environments prevents condensation and temperature fluctuations. Reliable protection against frost in enclosures and control cabinets as well as measuring equipment in explosive environments or mine workings exposed to firedamp.

Maintenance-free convection heater without fan
High-performance heating cartridge
Heater body: aluminium profile, anodised

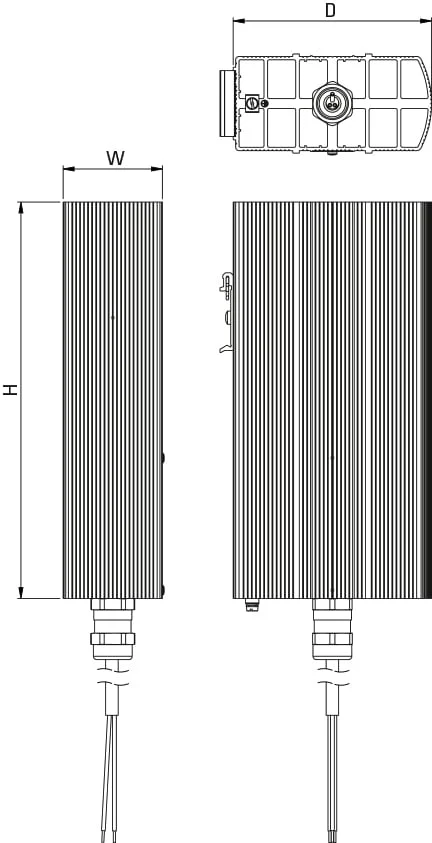

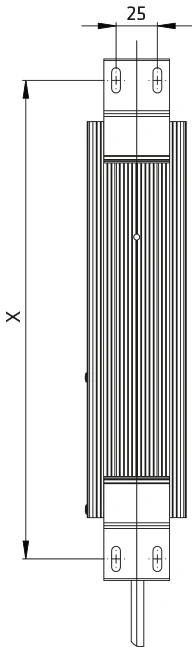

Mounting types: screw flange, clip
Ready for connection: silicone cable with strain relief in 1 m

Overview technical data

Device type	Convection heaters
Protection class	I
Protection type	IP66
Heating element	High-performance heating cartridge
Heater element	Aluminium profile, silver anodised
AC/DC	AC
Frequency	50;60 Hz
Surface temperature	< + 100 °C
Operating temperature	-60 °C - 50 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-60 °C - 85 °C
Connection type	Connection cable
Connection	Halogen-free silicone cable 3 x 0.75 mm², 1 m
Connection PE	0,75 - 2,5 mm²
Installation position	Airflow direction "in" vertical / connection at the bottom
Temperature class	T5

Product variants

Article number	Device name	Device type	Series	Protection class	Protection type	Heating element	Heater element	AC/DC	Operating voltage minimum	Operating voltage tolerance	Recommended backup fuse	Frequency	Heating capacity minimum	Surface temperature	Operating temperature	Operating humidity	Storage humidity	Storage temperature	Connection type	Connection	Connection PE	Drill hole spacing	Mounting	Installation position	Height	Width	Depth	Weight	Temperature class	Datasheet
02051.0-00	Explosion-proof enclosure heater	Convection heaters	CREX 020	I	IP66	High-performance heating cartridge	Aluminium profile, silver anodised	AC	230 V	208 V - 253 V	0.5 A	50;60 Hz	50 W	< + 100 °C	-60 °C - 50 °C	≤90 % RH	≤90 % RH	-60 °C - 85 °C	Connection cable	Halogen-free silicone cable 3 x 0.75 mm², 1 m	0,75 - 2,5 mm²	225 mm	Clip for 35 mm DIN rail Screw fixing	Airflow direction "in" vertical / connection at the bottom	180 mm	60 mm	120 mm	1400 g	T5	CREX020-02051.0-00-Datasheet-EN.pdf
02051.9-00	Explosion-proof enclosure heater	Convection heaters	CREX 020	I	IP66	High-performance heating cartridge	Aluminium profile, silver anodised	AC	120 V	132 V - 108 V	1 A	50;60 Hz	50 W	< + 100 °C	-60 °C - 50 °C	≤90 % RH	≤90 % RH	-60 °C - 85 °C	Connection cable	Halogen-free silicone cable 3 x 0.75 mm², 1 m	0,75 - 2,5 mm²	225 mm	Clip for 35 mm DIN rail Screw fixing	Airflow direction "in" vertical / connection at the bottom	180 mm	60 mm	120 mm	1400 g	T5	CREX020-02051.9-00-Datasheet-EN.pdf
02052.0-10	Explosion-proof enclosure heater	Convection heaters	CREX 020	I	IP66	High-performance heating cartridge	Aluminium profile, silver anodised	AC	230 V	208 V - 253 V	1 A	50;60 Hz	100 W	< + 100 °C	-60 °C - 50 °C	≤90 % RH	≤90 % RH	-60 °C - 85 °C	Connection cable	Halogen-free silicone cable 3 x 0.75 mm², 1 m	0,75 - 2,5 mm²	350 mm	Screw fixing	Airflow direction "in" vertical / connection at the bottom	300 mm	80 mm	160 mm	2800 g	T5	CREX020-02052.0-10-Datasheet-EN.pdf
02052.9-10	Explosion-proof enclosure heater	Convection heaters	CREX 020	I	IP66	High-performance heating cartridge	Aluminium profile, silver anodised	AC	120 V	132 V - 108 V	2 A	50;60 Hz	100 W	< + 100 °C	-60 °C - 50 °C	≤90 % RH	≤90 % RH	-60 °C - 85 °C	Connection cable	Halogen-free silicone cable 3 x 0.75 mm², 1 m	0,75 - 2,5 mm²	350 mm	Screw fixing	Airflow direction "in" vertical / connection at the bottom	300 mm	80 mm	160 mm	2800 g	T5	CREX020-02052.9-10-Datasheet-EN.pdf
