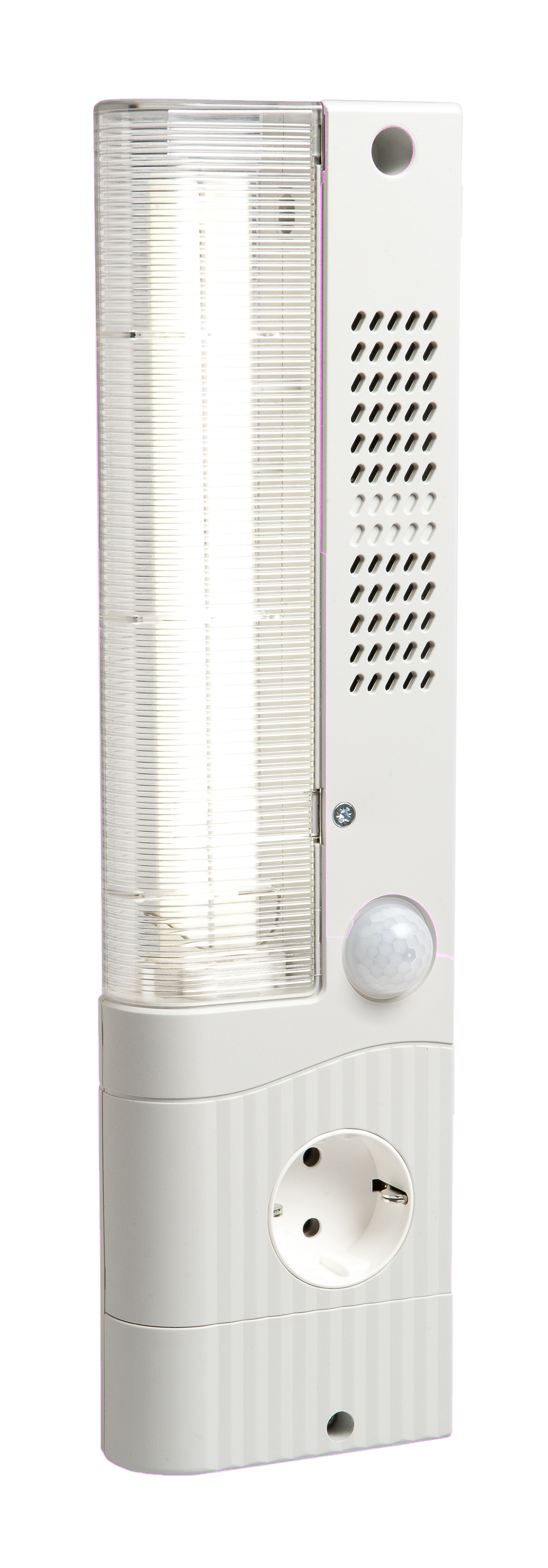

Enclosure lamp with energy-saving bulb
SL 025
The Slimline enclosure lamp with PIR motion detector uses the tried-and-tested energy-saving bulb as a light source. It emits a luminous flux of 900 Lm for the safe illumination of enclosures and casings. The electronic ballast and optional socket are integrated into the flat casing of the switch cabinet lamp.
- PIR motion detector with fixed duty cycle
- Screw fixing, optionally also magnet fixing

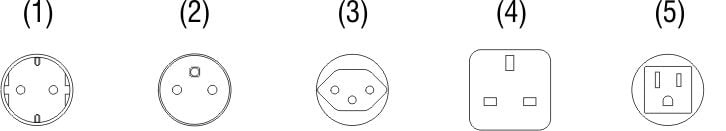

- Optionally with or without integrated socket, country versions: DE, FR, CH, UK, USA
Overview technical data
| Device name | Enclosure lamp with energy-saving bulb |
| Device type | Enclosure lamps |
| Series | SL 025 |
| Switch | Motion detector |
| Illuminant | Energy-saving lamp |
| Protection type | IP20 |
| Casing | Plastic to UL94 V-0, light grey |
| AC/DC | AC |
| Operating voltage minimum | 230 V |
| Operating voltage tolerance | 207 V - 253 V |
| Frequency | 50;60 Hz |
| Power consumption | 11 W |
| Luminous flux | 510 Lm |
| Operating socket | 250 V |
| Nominal current socket | 16 A |
| Service life | >10000 h |
| Operating temperature | -20 °C - 50 °C |
| Operating humidity | ≤90 % RH |
| Storage humidity | ≤90 % RH |
| Storage temperature | -45 °C - 70 °C |
| Torque | 0.8 Nmmax. |
| Connection | Clamp 2.5 mm² with strain relief, torque 0.8 Nm max. |

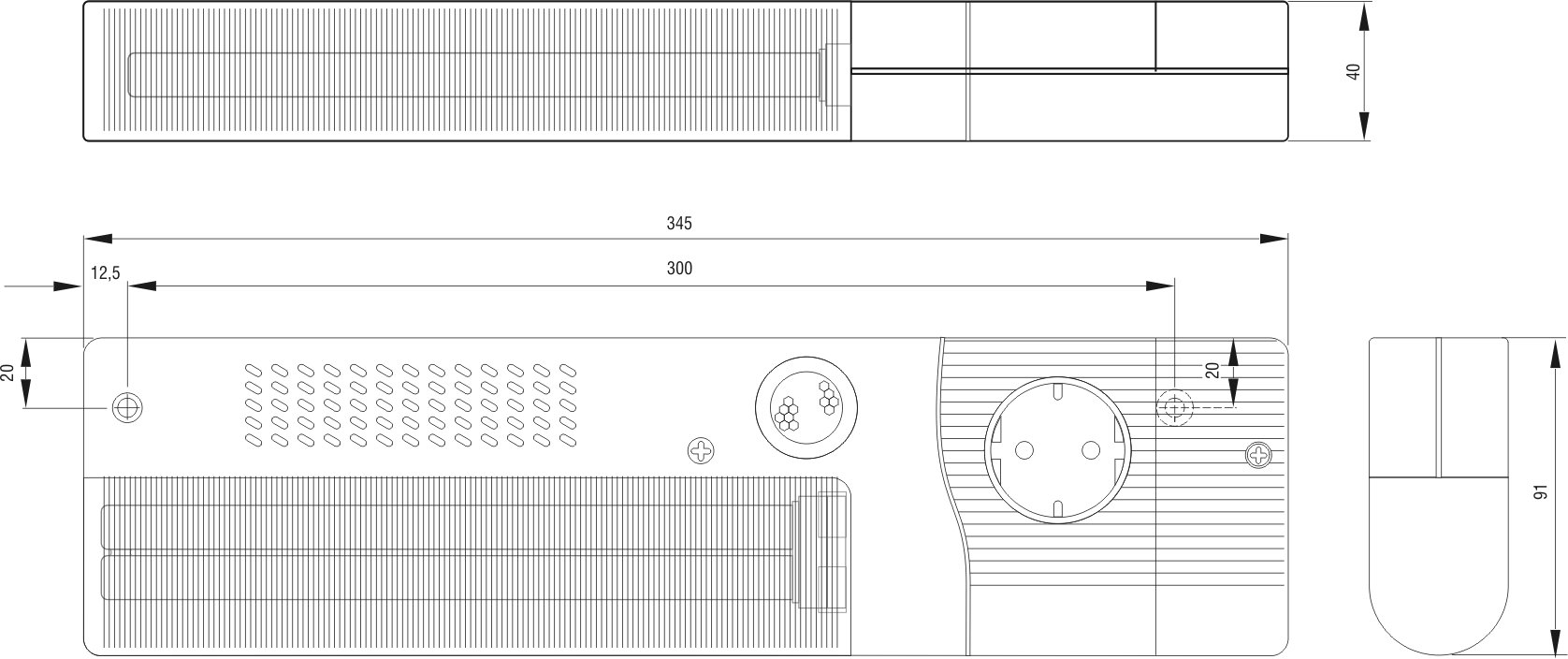

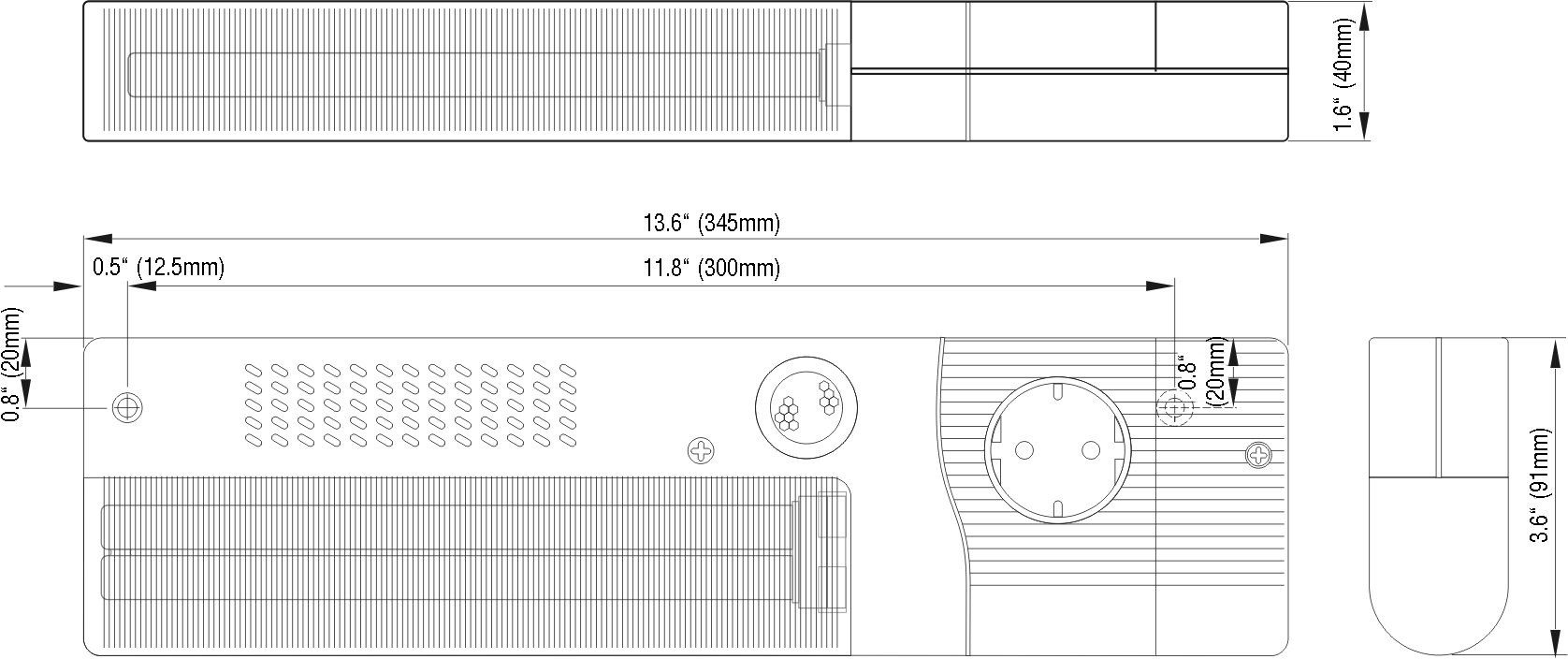

| Height | 91 mm |
| Width | 40 mm |
| Depth | 345 mm |
| Note | The motion switch switches the lighting on when the switch is opened. The duty cycle is restarted with every movement. The light can also be used in cabinets with a viewing window The SL 025 slimline lamp is also available with 19" front mounting. |
