Enclosure heater

CSF 060

The compact PTC enclosure heater with integrated tamper-proof thermostat provides reliable protection against condensation in enclosures and casings. Practical: The integrated, fixed thermostat makes an external thermostat superfluous. Two tried-and-tested presets are available (switch-off and switch-on temperature: +15 °C and 5 °C; +25 °C and 15 °C).

With integrated tamper-proof thermostat
Safe to touch, low surface temperature
Rail installation on 35 mm DIN rail
This enclosure heater is designed for continuous operation
PTC heating element

Overview technical data

Device type	Convection heaters Integrated control Touchsafe
Protection class	II
Protection type	IP20
Heating element	PTC thermistor (PTC)
Casing	Plastic to UL94 V-0, black
AC/DC	AC
Operating voltage	120 V - 240 V
Operating voltage tolerance	110 V - 265 V
Frequency	50;60 Hz
Surface temperature	< + 80 °C
Operating temperature	-45 °C - 70 °C
Operating humidity	≤90 % RH
Storage humidity	≤90 % RH
Storage temperature	-45 °C - 70 °C
Connection type	Connection terminal
Torque	0,8 Nmmax.
Connection	2-pole clamp 2.5 mm²
Mounting	Clip for 35 mm DIN rail
Installation position	Airflow direction "in" vertical / connection at the bottom

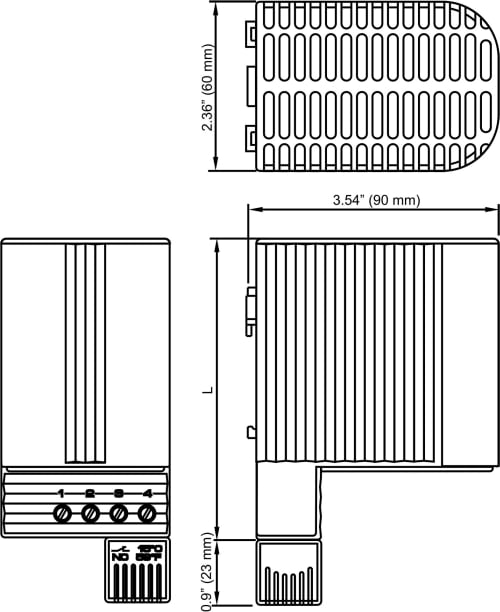

Width	60 mm
Depth	90 mm

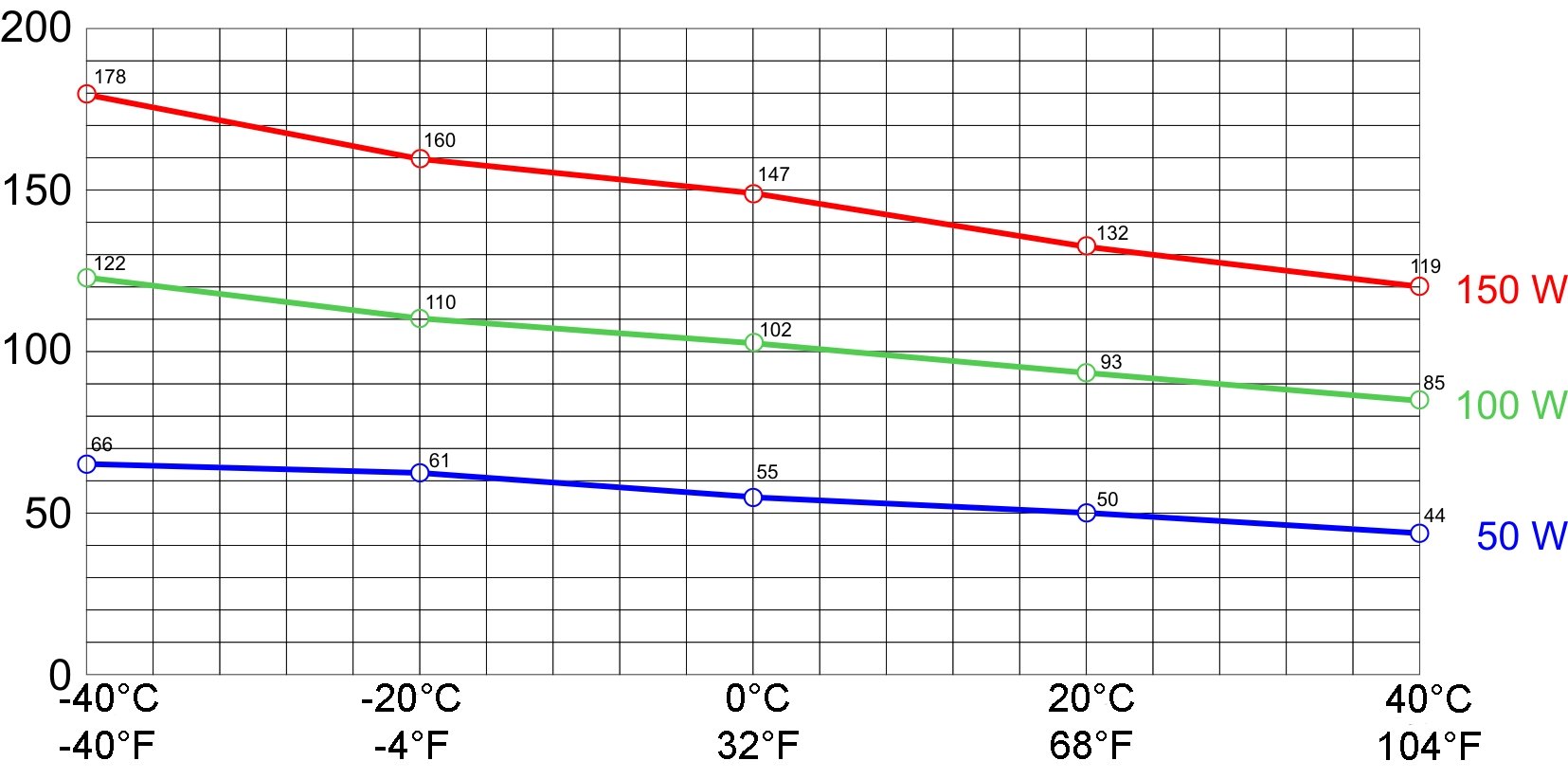

Note	Other switch-off and switch-on temperatures on request. Switch-on temperature tolerance at +5K. Operation below AC 140 V reduces the heating capacity by approx. 10 %. Heating capacity at ambient temperature - see power/ambient temperature diagram air outlet temperature 50 mm from the protective grille

Product variants

Article number	Follow-up article	Inrush current maximum	Recommended backup fuse	Heating capacity minimum	Switch-off temperature	Switch-on temperature	Air outlet temperature	Height	Weight	Datasheet
06001.0-00	06510.0-00	2,5 A	4 A	50 W	15 °C	5 °C	86 °C	110 mm	300 g	CSF060-06001.0-00-Datasheet-EN-SE.pdf
06002.0-00	06520.0-00	2,5 A	4 A	50 W	25 °C	15 °C	86 °C	110 mm	300 g	CSF060-06002.0-00-Datasheet-EN-SE.pdf
06011.0-00	06513.0-00	4,5 A	8 A	100 W	15 °C	5 °C	120 °C	110 mm	300 g	CSF060-06011.0-00-Datasheet-EN-SE.pdf
06012.0-00	06523.0-00	4,5 A	8 A	100 W	25 °C	15 °C	120 °C	110 mm	300 g	CSF060-06012.0-00-Datasheet-EN-SE.pdf
06021.0-00	06514.0-00	8 A	10 A	150 W	15 °C	5 °C	120 °C	150 mm	500 g	CSF060-06021.0-00-Datasheet-EN-SE.pdf
06022.0-00	06524.0-00	8 A	10 A	150 W	25 °C	15 °C	120 °C	150 mm	500 g	CSF060-06022.0-00-Datasheet-EN-SE.pdf
